Description

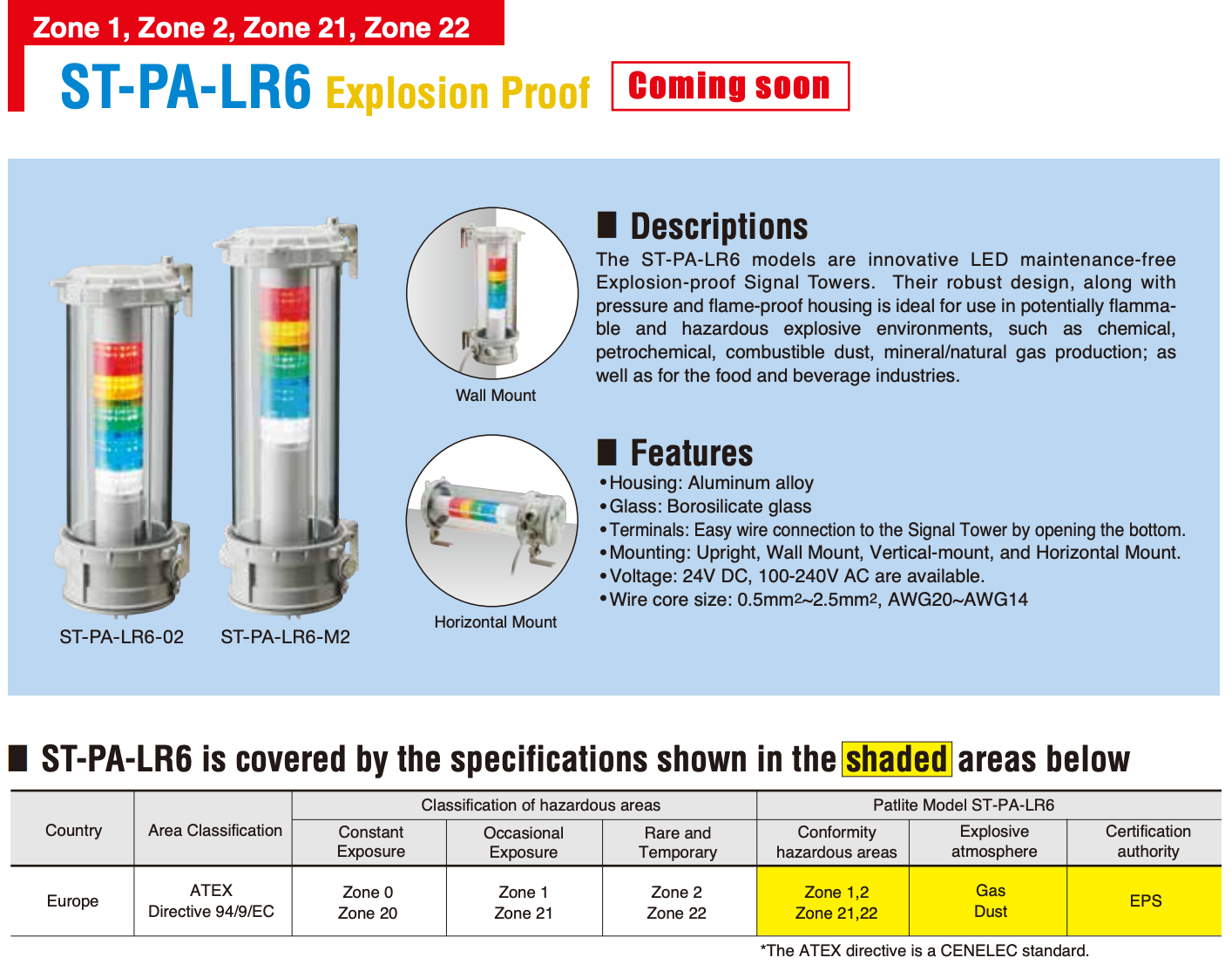

ST-PA-LR6 series Explosion Proof Intrinsically Safe Hazardous Area LED Signal Tower Light.

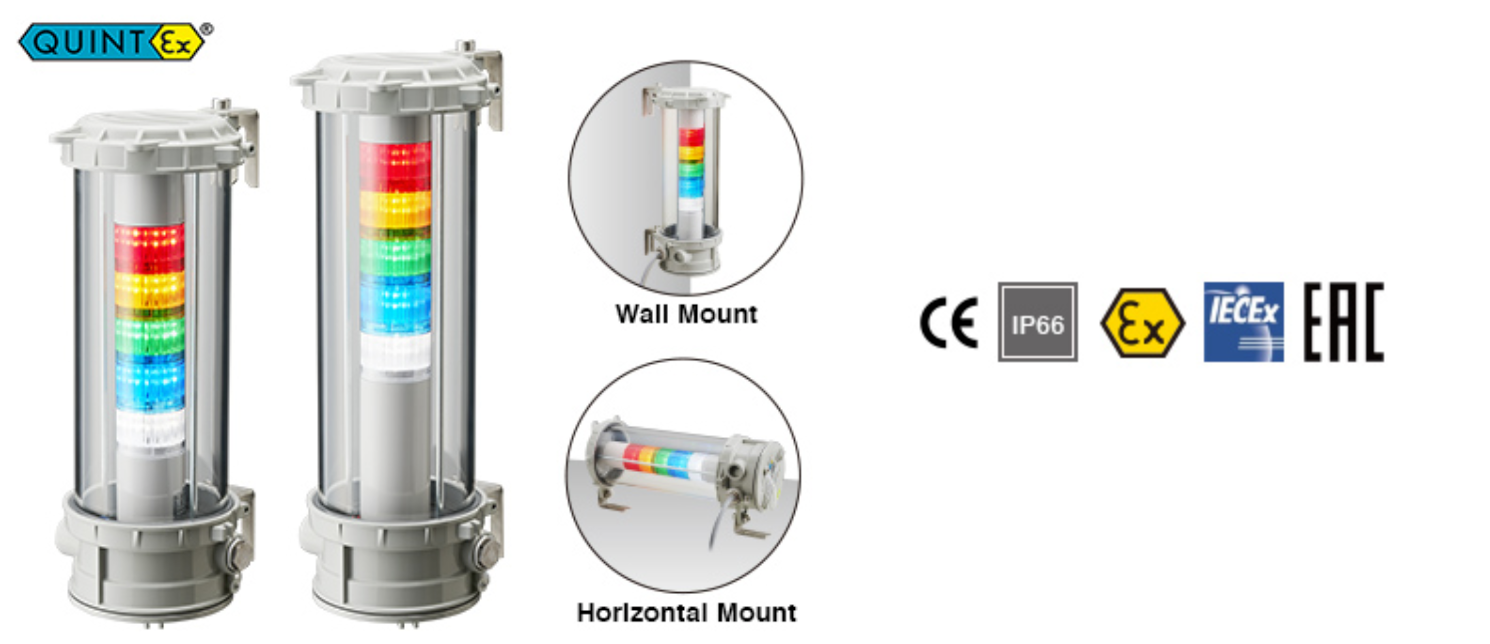

World's First IP66 QUIANT-EX ST-PA-LR6 ATEX IECx Zone1 Zone2 Zone21 Zone22 Explosion Proof Intrinsically Safe Hazardous Area LED Multi Status Indicating LED Tower Light and Alarm Sounder. Highest Quality Engineering and Multi-Zone approval by World's most recognized testing agencies. ATEX / IECx / EAC Approvals. Global Leaders in Industrial Signal hardware manufacturing.
- The ST-PA-LR6 models are innovative LED maintenance-free Explosion-proof Signal Towers. Their robust design, along with pressure and flame-proof housing is ideal for use in potentially flammable and hazardous explosive environments, such as chemical, petrochemical, combustible dust, mineral/natural gas production; as well as for the food and beverage industries.
Product Features
- Housing: Aluminum alloy
- Glass: Borosilicate glass
- Terminals: Easy wire connection to the Signal Tower by opening the bottom.

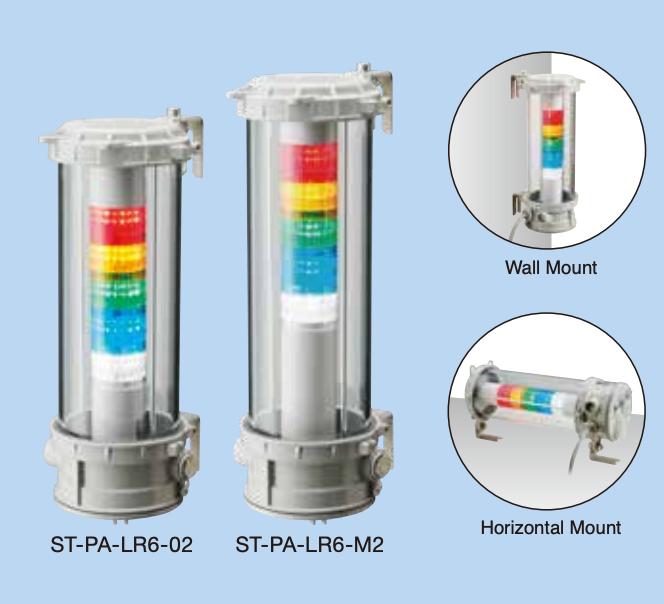

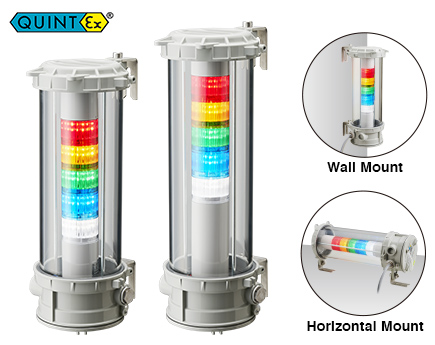

- Mounting: Upright, Wall Mount, Vertical-mount, and Horizontal Mount.
- Voltage: 24V DC, 100-240V AC are available.

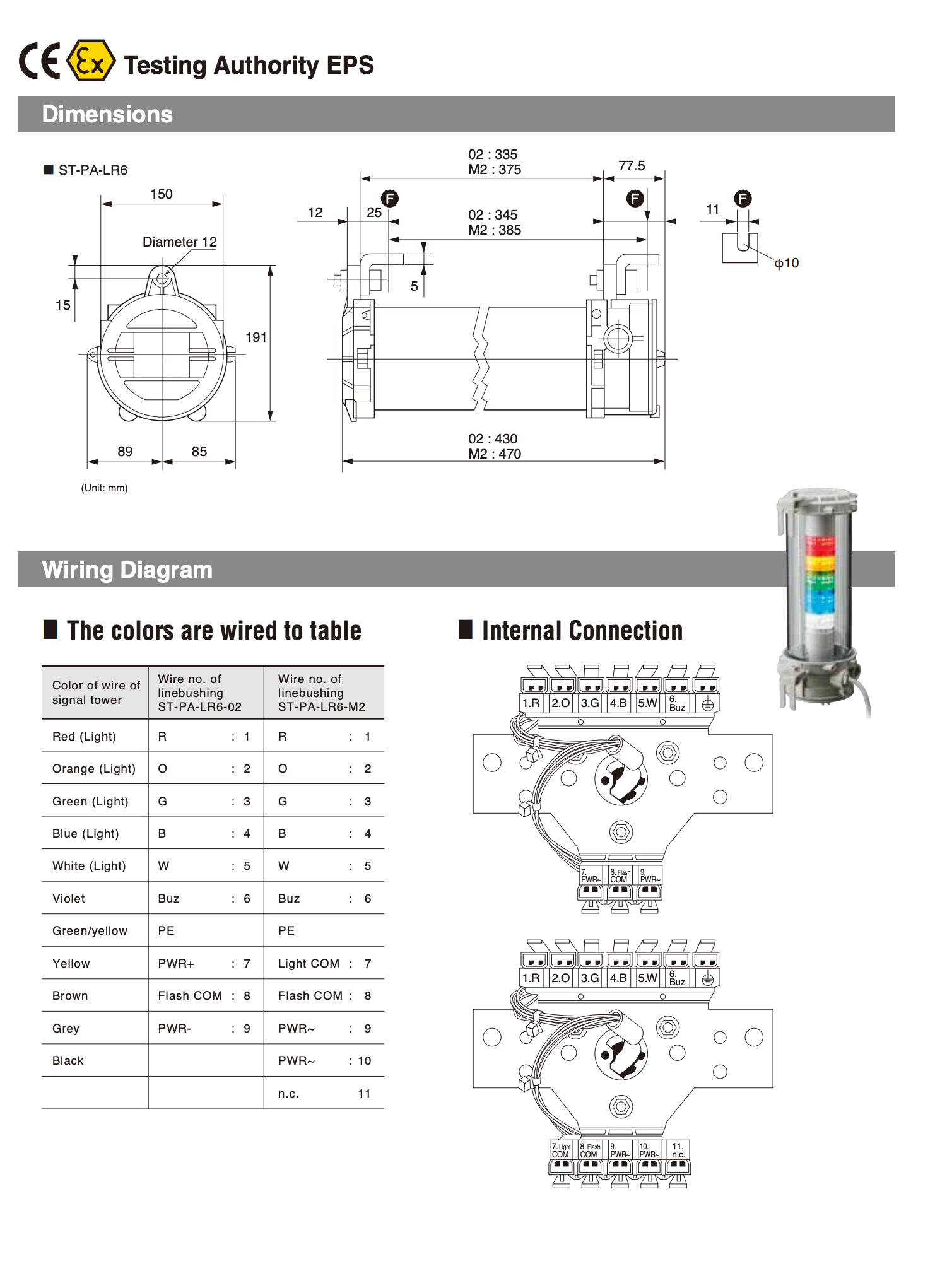

- Wire core size: 0.5mm2~2.5mm2, AWG20~AWG14
Model Specifications
| OPERATING VOLTAGES | - 02: 24V DC - M2: 100-240V AC |
|---|---|
| MOUNTING | - Vertical Mount - Horizontal Mount |
| BODY COLOR | - Enclosure: Grey - Signal tower : Off-white |
| STACKABLE TIERS | - 5-tier only |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear |
| CONFORMITY STANDARDS | -  II 2G Ex db IIC T6/T5 Gb- II 2G Ex tb IIIC T120°C Db- EN 60079-0, EN 60079-1, EN 60079-31 - 2014/34/EU - CE |
| PROTECTION RATING | - IP66 |
