Oil, Water, Chemical Resistant IP Rated Ultra Bright Industrial LED Work Lights Lighting. IP69K Perfect for Meat, Food and Beverage Processing, Medicine Manufacturing, CNC Machinery, Retail, Semi-Conductor, Scientific Clean Room environments and more. Contact us today for QTY, OEM, distributor discounts.
CLK-AG Worklight CLK Series
Water, Oil, Chemical Resistant, Ultra-bright LED Worklight with IP66G, IP67G, IP69K

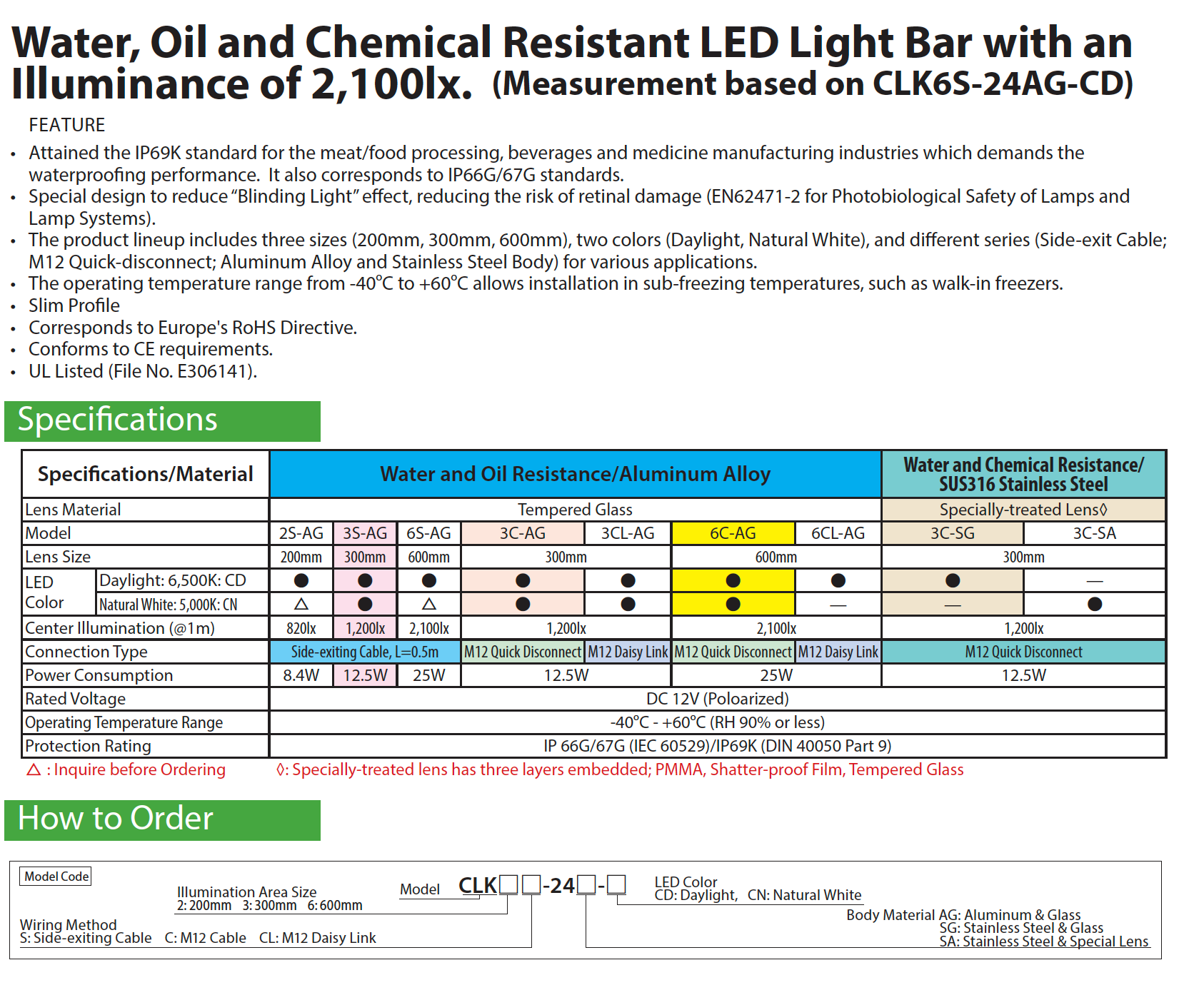

Water, Oil and Chemical Resistant LED Light Bar with an illuminance of 2,100lx. (Measurement based on CLK6S-24AG-CD)
FEATURES
• Attained the IP69K standard for the meat, food processing, beverages and medicine manufacturing industries which demands the waterproofing performance. It also corresponds to IP66G/67G standards.

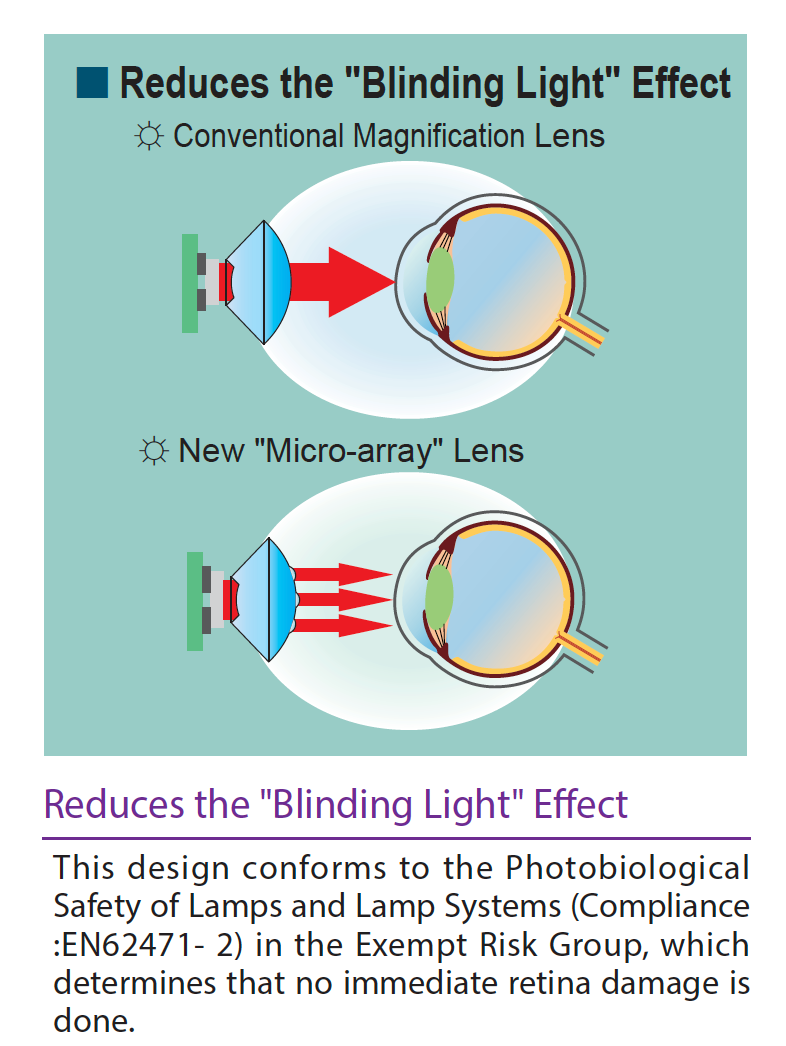

• Special design to reduce “Blinding Light” eff ect, reducing the risk of retinal damage (EN62471-2 for Photobiological Safety of Lamps and Lamp Systems).

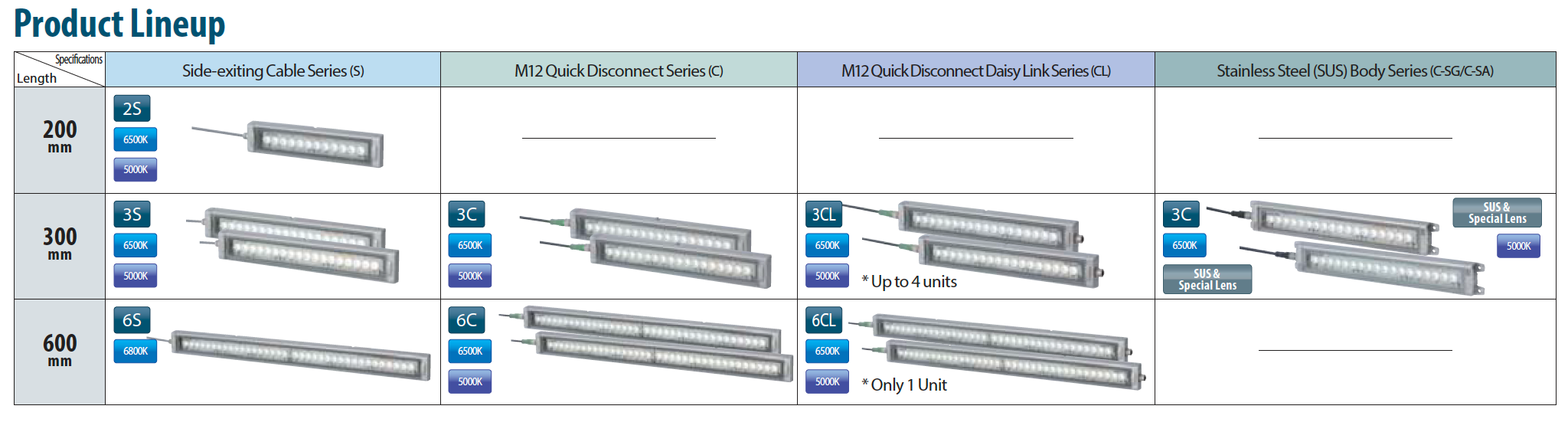

• The product lineup includes three sizes (200mm, 300mm, 600mm), two colors (Daylight, Natural White), and diff erent series (Side-exit Cable;
M12 Quick-disconnect; Aluminum Alloy and Stainless Steel Body) for various applications.
• The operating temperature range from -40c to +60c allows installation in sub-freezing temperatures, such as walk-in freezers.
• Slim Profile
• Corresponds to Europe's RoHS Directive.
• Conforms to CE requirements.
• UL Listed (File No. E306141).

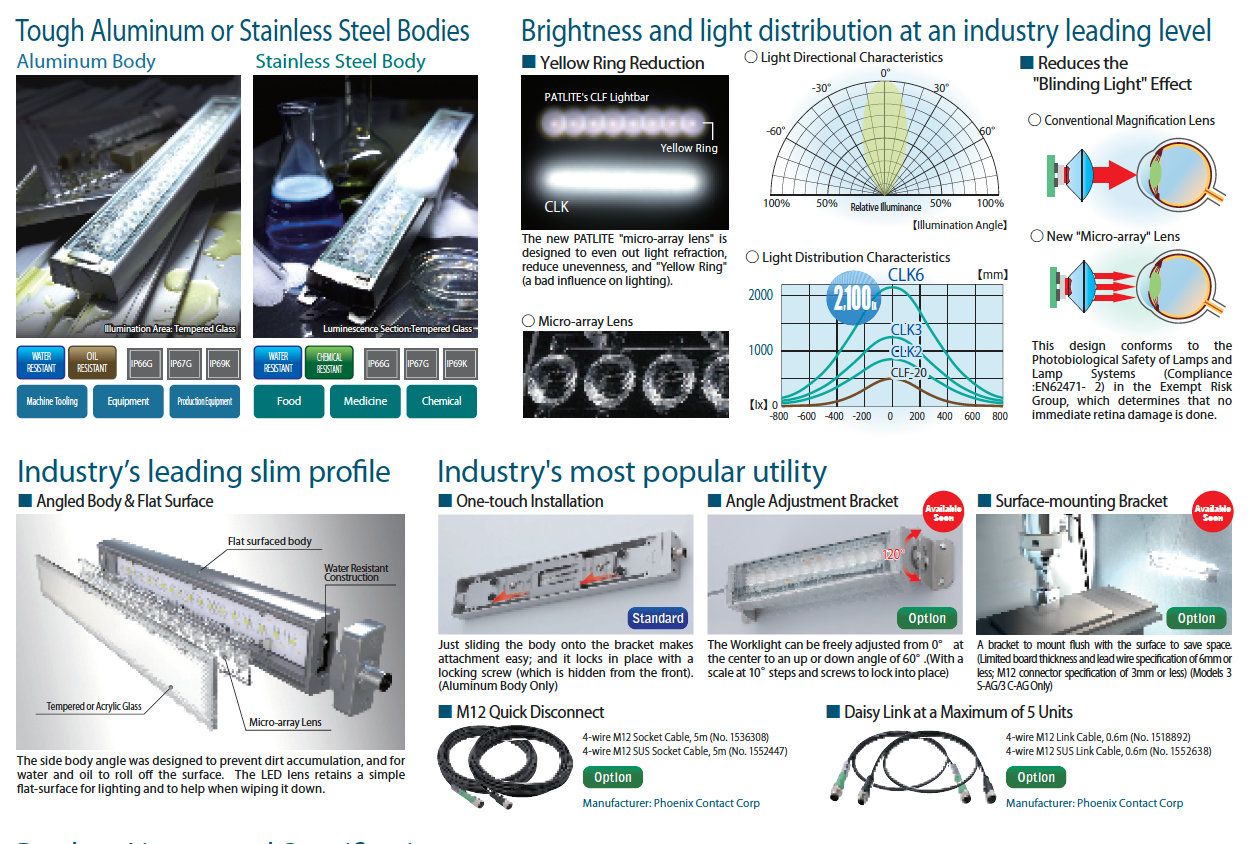

Product Features
- Impervious to Water, Oil, and Chemicals

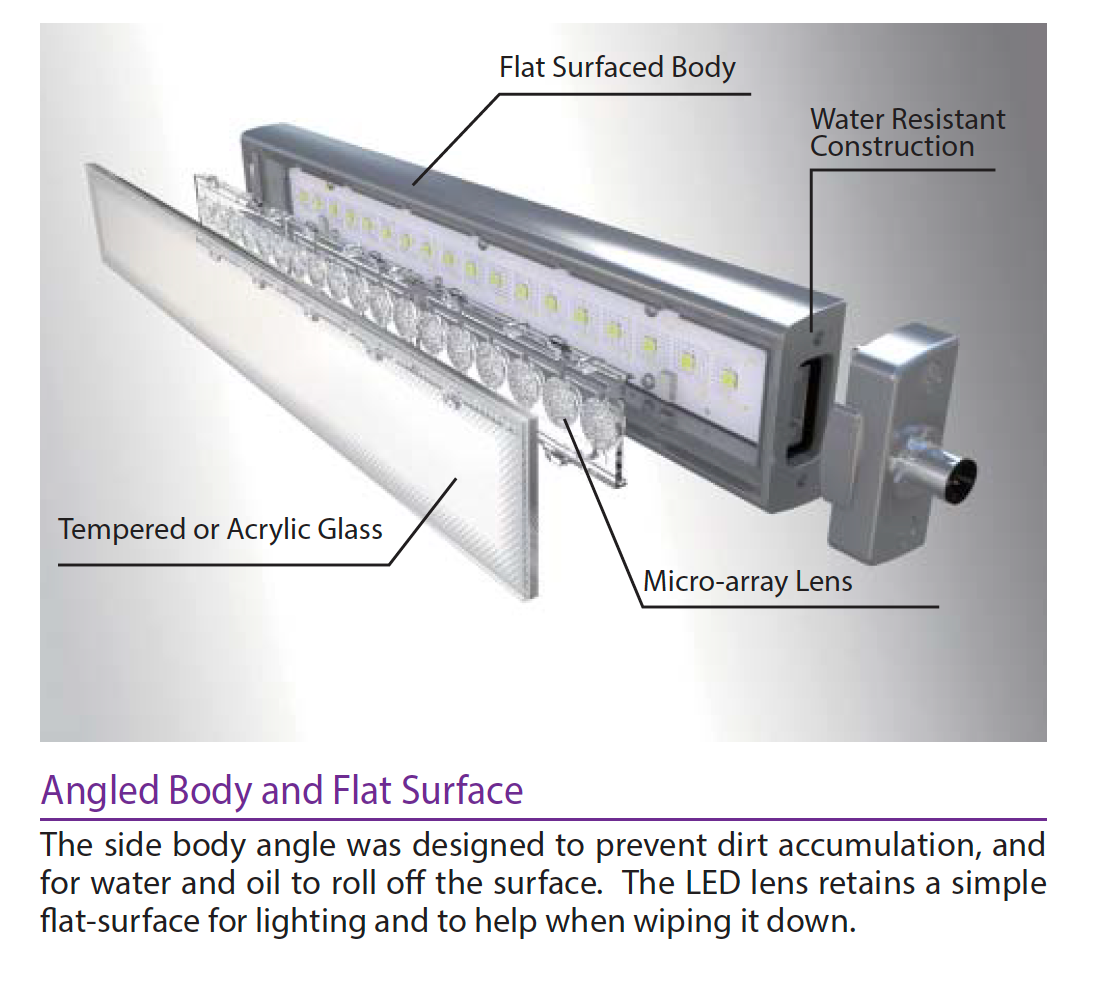

- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution

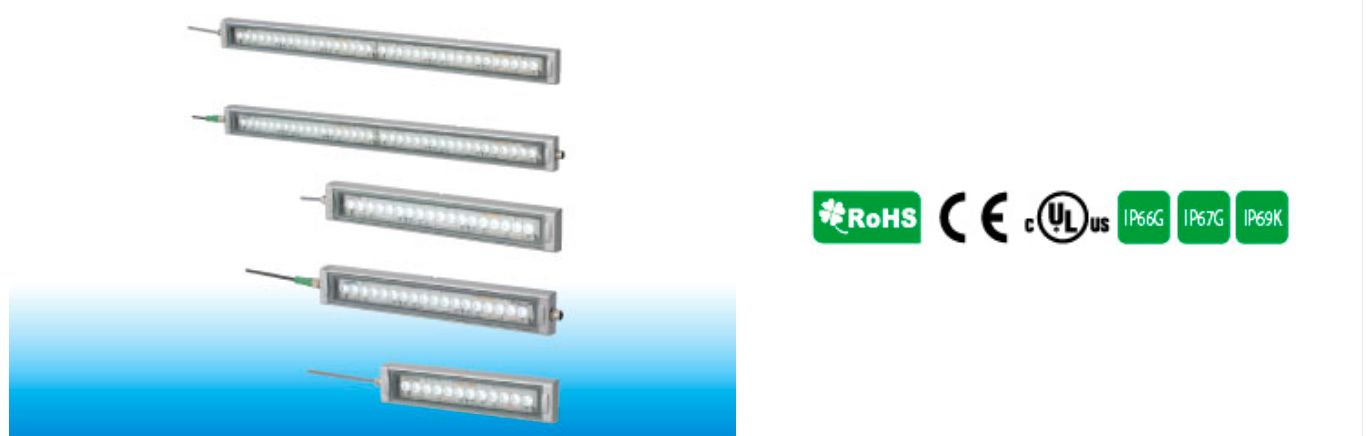

- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)

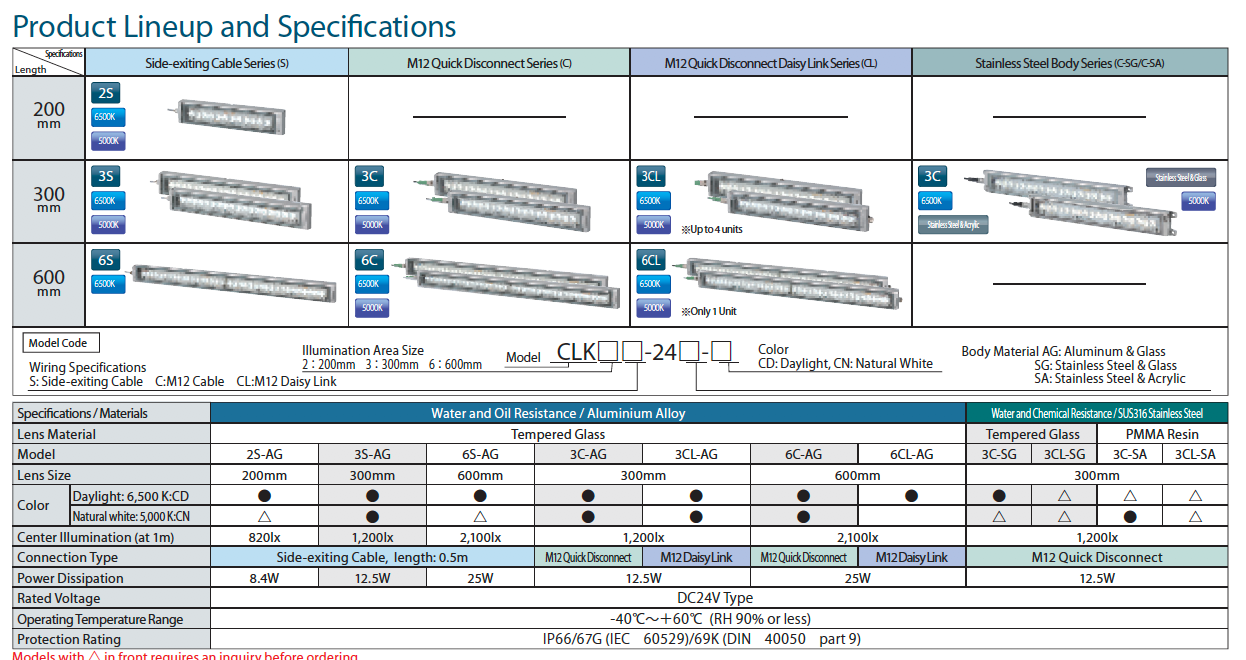

Model Specifications
| DIMENSIONS | - 200mm - 300mm - 600mm |
|---|---|
| VOLTAGES | - DC24V (Polarized) |
| BODY STYLE | - Side-exiting Cable Series - M12 Quick Disconnect Series - M12 Daisy Link Quick Disconnect Series - Stainless Steel Body Series |
| LENS MATERIAL | - Tempered Glass - Acrylic Resin Glass |
| CONFORMITY STANDARDS | - CE - UL Listed (Side-exiting Cable Series) - UL Recognized Component (M12 Quick Disconnect Series) - IEC62471-2 - RoHS |
| IP Rating | - IP66G - IP67G - IP69K |

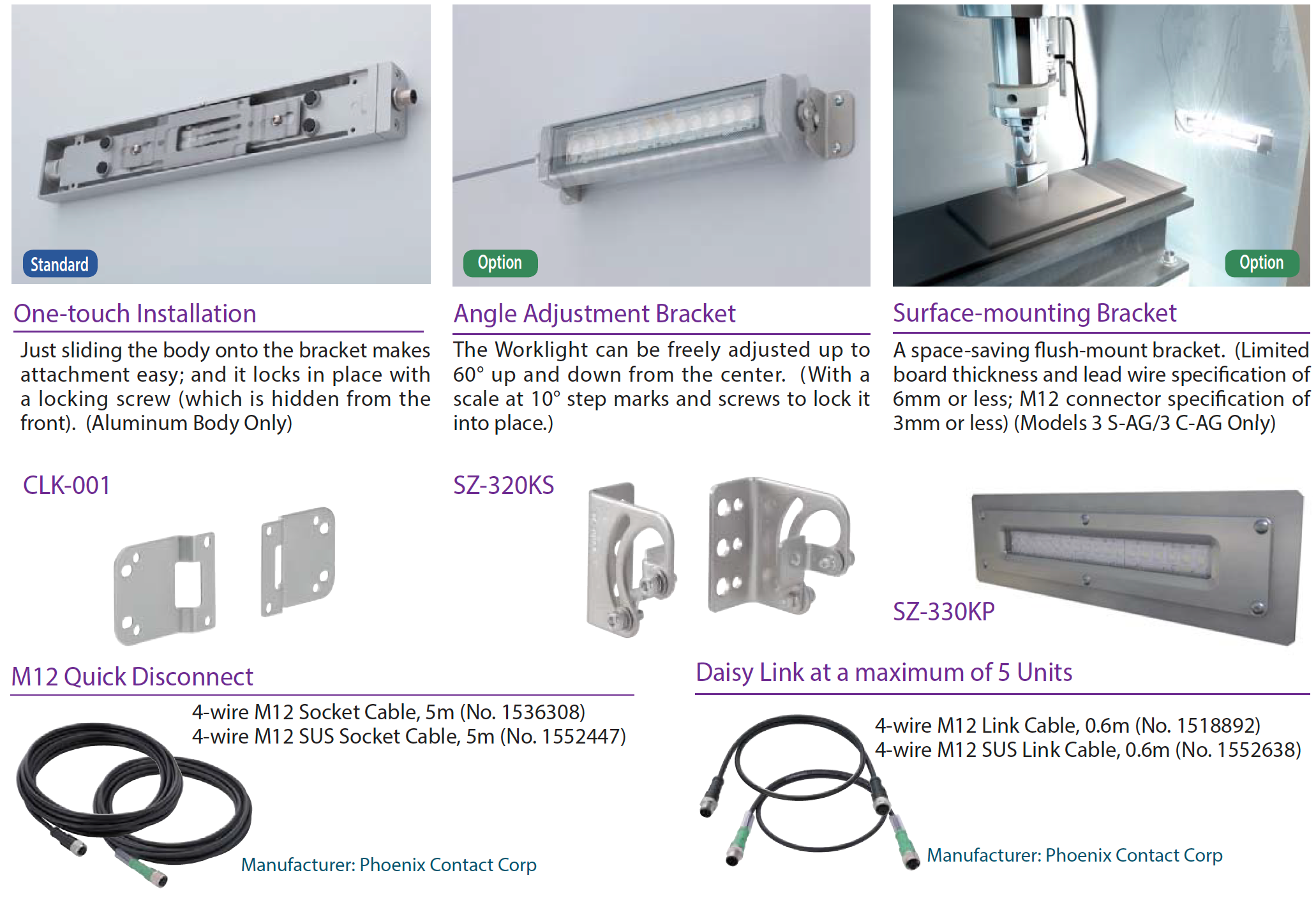

Accessories
