Description
|
 |
NHL-3FB1

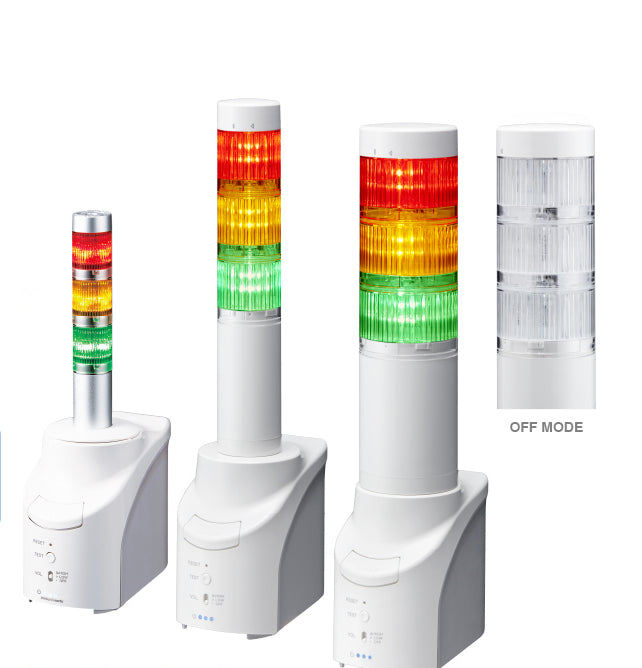

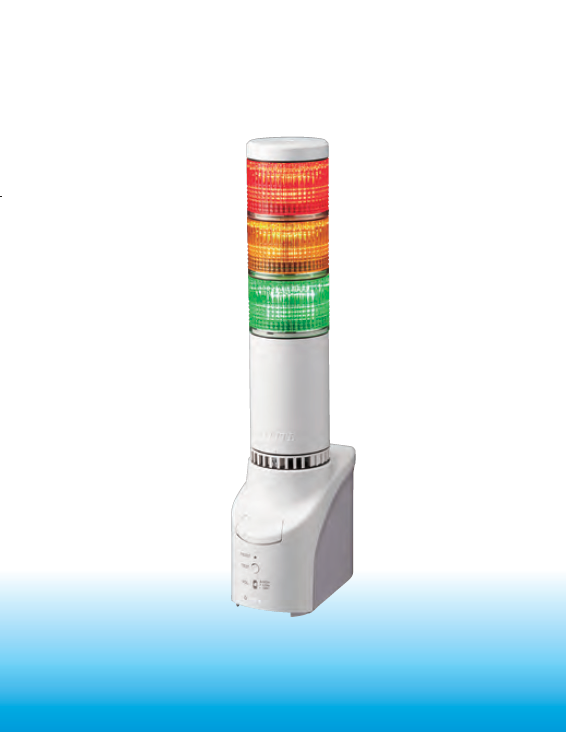

Network Monitoring Signal Tower 60mm

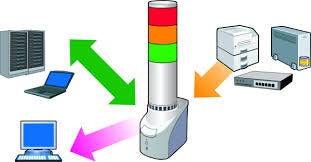

The NHL has a three-tiered signal tower with a buzzer and E-mail sending capability to report to a network manager immediately when a network event occurs via network connection.
- PATLITE SIGNALFX NHL-3FB1 Network Compatible Ethernet LED Signal Tower
- PATLITE SIGNALFX NHL NHL-3FB1 Network Monitoring Signal Tower
Product Features
- Correspond to SNMP Protocol
- Cooperate with various kinds of network devices that support SNMP protocol
- Possible to send SNMP Trap Exclusive MIB loaded
- Network Monitor Signal Tower loads the exclusive MIB to control itself with SNMP Ping Monitoring
- Monitor the health of (up to) 16 network devices using Ping Corresponds to RSH Command
- Warning light, flashing, buzzer can be easily activated by RSH command
- Prevent unauthorized access and information leakage
- By cooperating with an Asset Management Software, warning light, flashing and buzzer can be activated as warning when unauthorized access is attempted
Movie

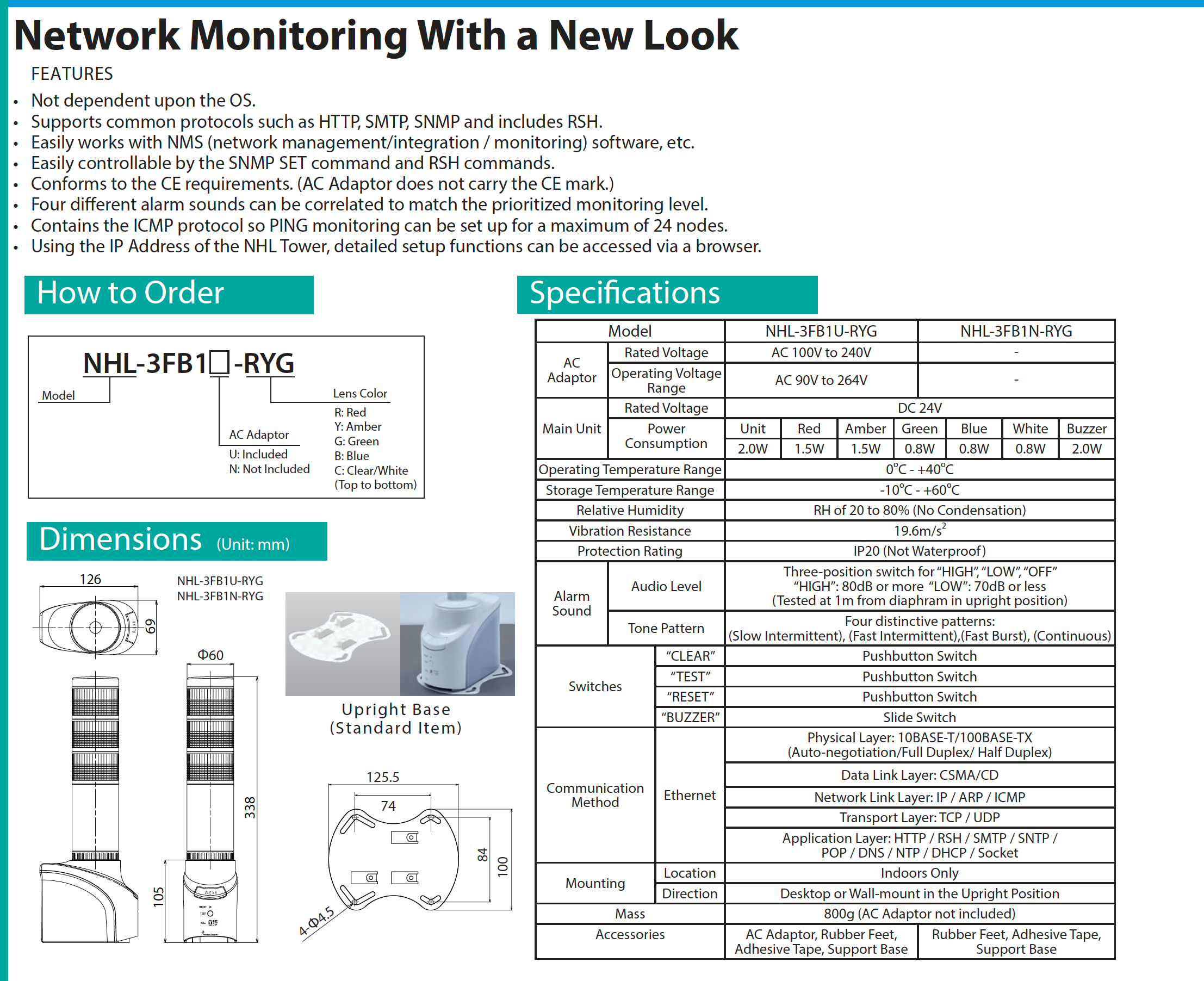

Model Specifications
| DIMENSIONS | - Tower diameter: 60mm - Overall dimensions: 69mm x 126mm x 338mm |
|---|---|
| OPERATING VOLTAGES | - AC100-240V (NHL-3FB1U Adaptor included) |
| PROTOCOLS | - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/ARP - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device Monitor - RSH Command - SNMP v1・v2 - Self-diagnosis - Application Monitor - SOCKET - E-mail Transmission |
| BODY STYLE | Interface converter: - Low-profile steel mounting base - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - Interchangeable LED Modules |
| BODY COLOR | - Interface Converter Base: Off-white - Tower: Beige |
| STACKABLE TIERS | - 3 tiers only |
| MODULE COLORS | - LED source Color: Red / Amber / Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Alarm 1: selectable, Slow Intermittent - Alarm 2: selectable, Fast Intermittent - Alarm 3: Fast Burst - Alarm 4: Continuous |

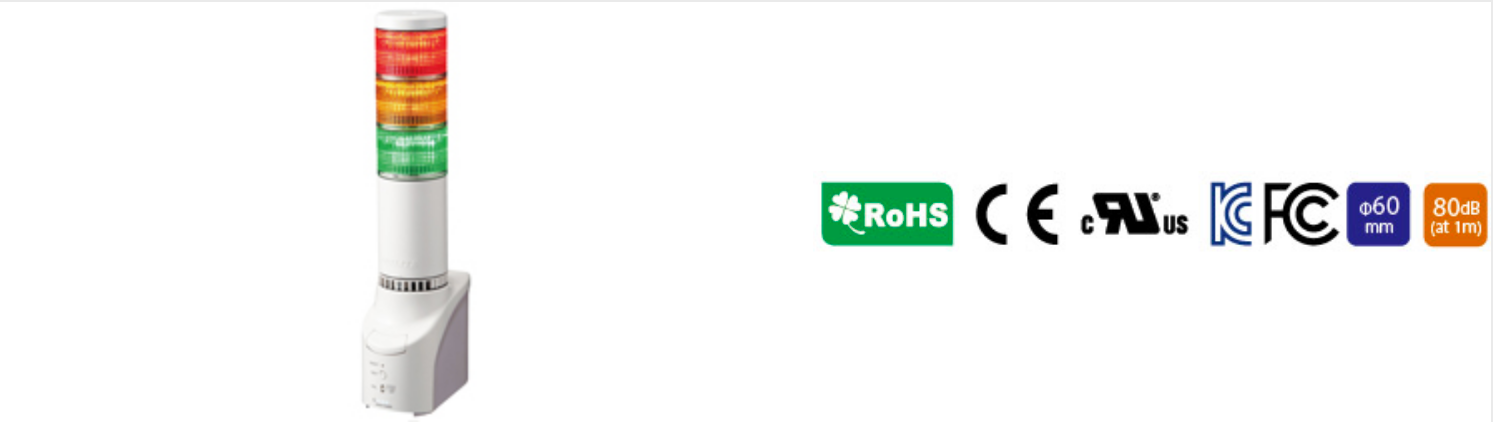

| CONFORMITY STANDARDS | - CE Marking - UL - RoHS |
