Description
-
LR7 LED Signal Tower Light Series Australia & NZ OEM Stock
70mm Diameter
Model: LR7-02WTNW Base + Cap with Built-In Quick Connect Terminal & PCB. Combine with LR7 LED Modules and mounting accessories.
- Our next generation signal tower line featuring cutting-edge technology, modular segments for field configuration, and a wide-array of options to fit the most challenging applications.
Product Features
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintaining substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12C: 80, LR4 & LR5: 85, LR6: 88, LR7: 90dB at 1m)
- A modular, “Twist and Lock”, system to easily customize and reconfigure LED and sound modules. (Field configurable)
- A sleek, smooth form factor and an enhanced body construction for performance in harsh environments. (IP65 protection rating)
- Rated voltage: DC24V
- Standard body color: Off-white. Silver and black bodies available as components only
- Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT)

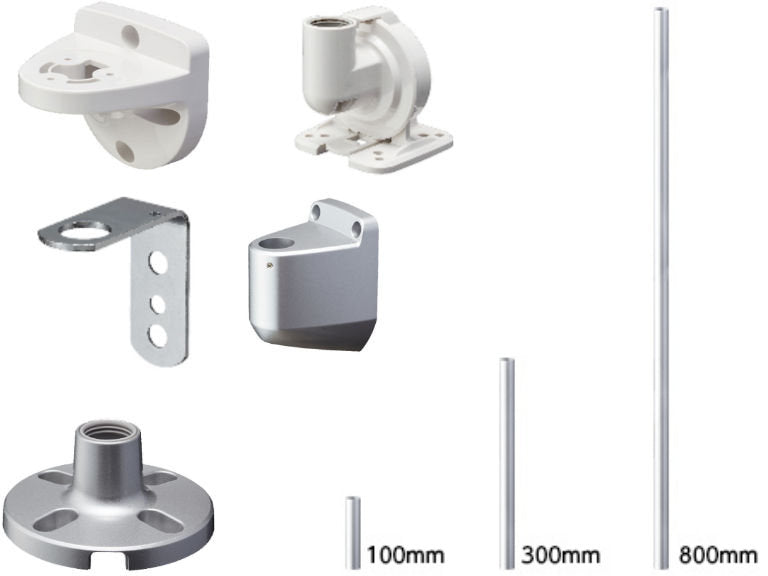

- Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)
Specifications
| Operating Ambient Temperature | -20℃ - +50℃ |
|---|---|
| Operating Humidity Range | 90% RH or less, no condensation |
| Storage Temperature Range | -30℃ - +60℃ |
| Storage Humidity Range | 90% RH or less, no condensation |
| Mounting Location | Indoor Use |
| Mounting Direction | Upright Position |
| Protection Rating*1 | IP65(IEC 60529) / NEMA TYPE 4X, 13 |
| Environmental Conditions | Upright Position |
| Insulation Resistance | More than 1MΩ at DC500V between the power input lead and chassis |
| Withstand Voltage | AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.) |
| Flash Rate | 60 ±2 Flashes / min |
| Sound Level | LR6Typ. 88dB |
| Sound Reduction*2 | ab. -10dB reduction |
| Environmental Conditions | Buzzer Sound No.4 (Sweep) from all directions at a 1m distance |
| Buzzer Sound | 4 patterns*2 No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound |
| Transistor Output | NPN / PNP |
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●FCC Part 15 Subpart B Class A ●RoHS Directive (EN 50581) ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●KC (KN 61000-6-4, KN 61000-6-2)*3 |
*1: LJ Type is IP54 *2: Dependent on DIP Switch Settings *3: Except KT and M2 LJ Type *4: M2 Type Only (Except LJ Type)
LED Unit Specifications
| Color | Red | Amber | Green | Blue | White | |
|---|---|---|---|---|---|---|
| Current Consumption / Power Consumption | Typ. | 0.04A/1W | ||||
| Max. | 0.045A/1.3W | |||||
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) |
|||||
Buzzer Unit Specifications
| Current Consumption / Power Consumption | Typ. | 0.04A/1W | ||||
|---|---|---|---|---|---|---|
| Max. | 0.3A/1.3W | |||||
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●FCC Part 15 Subpart B Class A ●RoHS Directive (EN 50581) |
|||||
Movie
Accessories
|
|
|
|
|
|
|
