Description

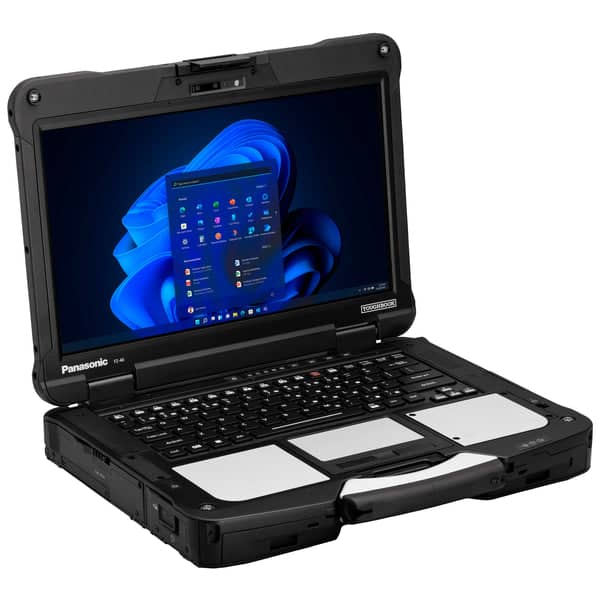

Introducing TOUGHBOOK 40 Rugged Notebook Laptop Computer
World’s most trusted and used premium construction shock and weather resistant military standard tested laptop - The very best in its class for any field worker requiring reliability and those seeking to reduce downtime.
Manufacturer Code - FZ-40ACAABAA
Specification of this listing : Panasonic Toughbook 40 Mk1 i5-1145G7, 16GB, 512GB SSD Opal, 14" FHD, 4G (w/ 30 Point GPS), Dual Pass Through, Wifi, W11P, 3YR Wty
Additional features and connections storage can be achieved by customization via the quick connect expansion bays which are tool-less expansion slots on the laptop. Modular features can be purchased by us. (Enquire) i.e. Optional drive, finger print scanner, smart card reader, additional SSD, connection ports etc.
The 14.0” Panasonic TOUGHBOOK 40 rugged laptop breaks new ground offering unrivaled flexibility in even the most demanding and unpredictable environments. With 8 user interchangeable modular areas including its unique modular expansion packs, the TOUGHBOOK 40 is our most flexible and customisable laptop ever. Blu-Ray or DVD optical drives, authentication readers, and IO ports are all user-upgradeable, and its state-of-the-art design optimises thermals for maximum performance all day, every day.
Windows 11 Pro Rugged Laptop
14.0" Outdoor Full-HD Display with Modular Expansion Areas
The TOUGHBOOK 40 is the most versatile 14.0" fully rugged TOUGHBOOK ever built, but doesn't compromise on durability with improved strength and a fully rugged design. In terms of flexibility, the TOUGHBOOK 40 is equally outstanding. It offers a huge array of flexible user configuration options, making it easier to adapt the device to suit any need.
- State-of-the-art design optimizes thermals for effortless performance
- Class leading 95db speakers, 5MP infrared webcam with privacy cover and tetra-array microphones
- Fully rugged all-weather MIL-STD-810H & IP66 design built with magnesium alloy
- Fastest cellular in the industry up to 2Gbps 4G modem or 5.5Gbps 5G modem adds Sub6, C-band and mmWave
- With powerhouse protection out-of-the-box that proactively helps prevent infections, protects information, and reduces security complexity
- The expansion area features several different types of xPAKs including a barcode reader, optical drives, authentication readers, additional I/O, batteries and storage.
- Integrated with military-grade security and communications capabilities to support Defence operations.
- Comes with One touch Concealed Mode function featuring a super reduced brightness screen and keyboard for night use, and disabling of status LEDĀ’s, speaker volume and communication (4G, WiFi, BT).
- Do not come standard with the VGA+Serial+Lan port in the Rear Expansion Area. Need to buy FZ-VCN401U VGA+Serial+Lan accessory pack separately
- *The information provided under "Features" pertains to general Toughbook details. For specific technical specifications, kindly refer to the "Technical Details" below.
Technical Details
| Model | Toughbook 40 |
|---|---|
| Platform | Full-size Notebook |
| Classification | Fully Rugged |
| Operating System | Windows 11 Pro |
| Processor | Intel Core i5-1145G7 |
| MAX CPU Clock Speed | 4.4GHz |
| Memory (Installed / Max) | 16GB / 64GB |
| Memory Type | DDR4 |
| Memory Speed | 3200Mhz |
| Memory Interface | 260-pin SO-DIMM |
| Memory Slots (Used / Total) | 1 / 2 |
| Screen Size (Inches) | 14 |
| Max Resolution (H x V Pixels) | 1920 x 1080 |
| Back Lighting | LCD |
| Aspect Ratio | 16:09 |
| Touch Capable | Yes |
| Touch Technology | Sunlight-Viewable Glove-enabled Capacitive Touchscreen |
| Graphics | Intel UHD Graphics |
| Dedicated Video Memory | Shared |
| 3D Capable | No |
| Storage | 512GB OPAL NVMe SSD |
| Optical | Optional |
| Modular Bay | Optional Modules Available |
| Audio | Waves MaxxAudio Stereo Speakers |
| Webcam | Stereo Speakers |
| LAN | YES |
| Wireless | Intel Wi-Fi 6 AX201 (up to 2.4 Gbps) |
| Bluetooth | v5.1 (Class 1) |
| Mobile Broadband | 4G LTE |
| GPS | 30-Channel GNSS |
| Modem | None |
| Keyboard | User-removable 82-key keyboard |
| Pointing Device | 6 modes (auto, rain, glove, touch, pen, pen/touch) |
| Docking Station | Optional |
| Card Slots | MicroSDXC (UHS-1) |
| Connectivity | USB-C Thunderbolt 4, 40Gbps 3A, USB-A x2, MicroSDXC UHS-I, HDMI 4K, Ethernet 1Gbps RJ-45, Audio In/ |
| Outputs | Audio Out 3.5mm |
| Security | TPM 2.0, Password security, Integrated hardware security lock slot |
| Software | Panasonic Utilities and Recovery Partition |
| Other Features | Dual Pass Through |
| Unit Colour | Black |
| Battery | Lithium-Ion 10.8V, 6500mAh (typical), 6300mAh (minimum) |
| Operation Time | Approx 18 hours (Mobile Mark 2014) |
| Powered | AC 100V-240V worldwide power, auto sensing/switching |
| Package Contents | Power Supply, Power Cord, Capacitive Stylus Pen, Display Cleaning Cloth and User Manual |
| Packaging | Retail |
| Unit Dimensions (W x H x D mm) | 354mm x 301mm x 54.4mm (without protruding parts) |
| Weight (Kg) | Approx 3.35kg (depending on configuration) |
| Warranty | 3 years |

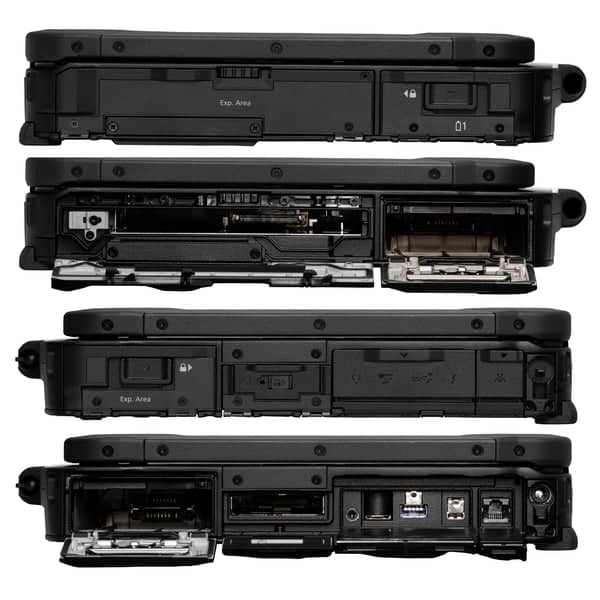

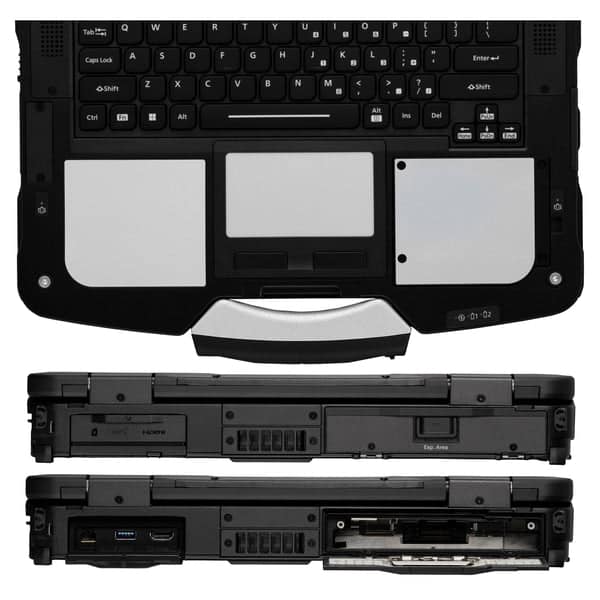

8 user changeable modular areas
The TOUGHBOOK 40 adopts a modular design, featuring eight user-replaceable option areas including the battery, memory, storage, keyboard and four additional expansion areas.
The expansion areas feature several different types of expansion packs including Blu-Ray or DVD optical drives, authentication readers, additional inputs/outputs, long life batteries and secure storage. All of the modular options provide up to 6,048 possible combinations to choose from.
This unparalleled customisation enables you to help futureproof your investment, simplify ordering and maintenance, and decrease downtime.
Designed for discretion
We understand that it's not always "Business as Usual". In fact, the TOUGHBOOK 40 outshines all else when put amongst the most extreme conditions. With specialist Defence features for night operations such as "Concealed Mode" which at the press of a button removes all light and electronic transmissions, through to a range of enhancements such as rubberised keyboards for those Mining and Field Service workers operating constantly in dusty envrionments, the TOUGHBOOK 40 can be tailored to your needs.

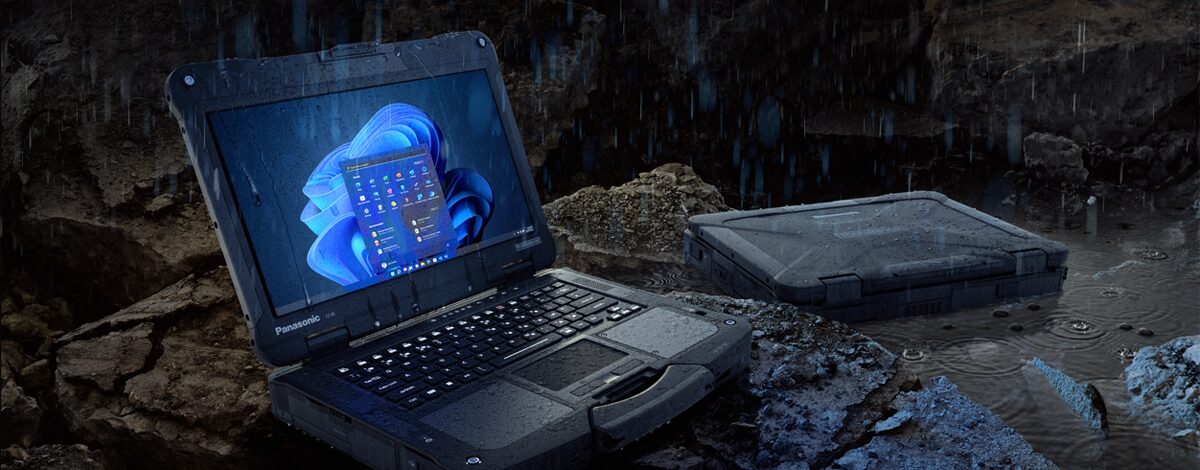

No more device failures, downtime or interrupted work
Engineered from the ground up to be used on-the-go and in harsh environments, TOUGHBOOK 40 is tested to strict military standards (MIL-STD810H) and is the first TOUGHBOOK notebook to obtain a complete IP66 rating.
As our toughest TOUGHBOOK ever, it’s also built to withstand drops of up to 180cm as well as knocks, vibrations and extreme temperatures for ultimate reliability in any environment.
Communications that never stop
To ensure effective communications in the field, the Waves MaxxAudio® Stereo Speakers emphasises the human voice to ensure smooth conversations with up to 3x the accuracy in noisy environments. The new Quad array microphone with AI noise reduction also removes ambient noise from the microphone input.
Secure & Safe
Data and device security is paramount. TOUGHBOOK 40 is a certified Microsoft Secured-core PC and comes equipped with an Intel® Core™ vPro® processor and NVMe OPAL SSD drives.
More Information
- Innovative modular design and user-removable expansion packs offer unparalleled customization
- State-of-the-art design optimizes thermals for effortless performance
- Class leading 95db speakers, 5MP infrared webcam with privacy cover and tetra-array microphones
- Fully rugged all-weather MIL-STD-810H & IP66 design built with magnesium alloy
- Fastest cellular in the industry up to 2Gbps 4G modem or 5.5Gbps 5G modem adds Sub6, C-band and mmWave
- With powerhouse protection out-of-the-box that proactively helps prevent infections, protects information, and reduces security complexity
- The expansion area features several different types of xPAKs including a barcode reader, optical drives, authentication readers, additional I/O, batteries and storage.
- Port and Expansions: USB-A x 2 (plus 2 more optional), Thunderbolt 4 USB-C (w/PD), MicroSDXC, HDMI (optional 2nd), Optional VGA, Ethernet (optional 2nd), Optional Serial, Audio In/Out, Optional DVD D
- Integrated with military-grade security and communications capabilities to support Defence operations.
- Comes with One touch Concealed Mode function featuring a super reduced brightness screen and keyboard for night use, and disabling of status LEDĀ’s, speaker volume and communication (4G, WiFi, BT).
- Do not come standard with the VGA+Serial+Lan port in the Rear Expansion Area. Need to buy FZ-VCN401U VGA+Serial+Lan accessory pack separately
- *The information provided under "Features" pertains to general Toughbook details. For specific technical specifications, kindly refer to the "Technical Details" below.
Technical Details
| Model | Toughbook 40 |
|---|---|
| Platform | Full-size Notebook |
| Classification | Fully Rugged |
| Operating System | Windows 11 Pro |
| Processor | Intel Core i5-1145G7 |
| MAX CPU Clock Speed | 4.4GHz |
| Memory (Installed / Max) | 16GB / 64GB |
| Memory Type | DDR4 |
| Memory Speed | 3200Mhz |
| Memory Interface | 260-pin SO-DIMM |
| Memory Slots (Used / Total) | 1 / 2 |
| Screen Size (Inches) | 14 |
| Max Resolution (H x V Pixels) | 1920 x 1080 |
| Back Lighting | LCD |
| Aspect Ratio | 16:09 |
| Touch Capable | Yes |
| Touch Technology | Sunlight-Viewable Glove-enabled Capacitive Touchscreen |
| Graphics | Intel UHD Graphics |
| Dedicated Video Memory | Shared |
| 3D Capable | No |
| Storage | 512GB OPAL NVMe SSD |
| Optical | Optional |
| Modular Bay | Optional Modules Available |
| Audio | Waves MaxxAudio Stereo Speakers |
| Speakers | Stereo Speakers |
| Webcam | 5MP Front Camera with IR |
| LAN | YES |
| Wireless | Intel Wi-Fi 6 AX201 (up to 2.4 Gbps) |
| Bluetooth | v5.1 (Class 1) |
| Mobile Broadband | 4G LTE |
| GPS | 30-Channel GNSS |
| Modem | None |
| Keyboard | Rubber User-removable 82-key keyboard |
| Pointing Device | 6 modes (auto, rain, glove, touch, pen, pen/touch) |
| Docking Station | Optional |
| Card Slots | MicroSDXC (UHS-1) |
| Connectivity | USB-C Thunderbolt 4, 40Gbps 3A, USB-A x2, MicroSDXC UHS-I, HDMI 4K, Ethernet 1Gbps RJ-45, Audio In/ |
| Outputs | Audio Out 3.5mm |
| Security | TPM 2.0, Password security, Integrated hardware security lock slot |
| Software | Panasonic Utilities and Recovery Partition |
| Other Features | Dual Pass Through, Rubber Keyboard |
| Unit Colour | Black |
| Battery | Lithium-Ion 10.8V, 6500mAh (typical), 6300mAh (minimum) |
| Operation Time | Approx 18 hours (Mobile Mark 2014) |
| Powered | AC 100V-240V worldwide power, auto sensing/switching |
| Package Contents | Power Supply, Power Cord, Capacitive Stylus Pen, Display Cleaning Cloth and User Manual |
| Packaging | Retail |
| Unit Dimensions (W x H x D mm) | 354mm x 301mm x 54.4mm (without protruding parts) |
| Weight (Kg) | Approx 3.35kg (depending on configuration) |
| Warranty | 3 years |
Accessories
Resources
High resolution Image
Specifications table
| Mobile Computing Platform | Intel® Core™ i5-1145G7 vPro™ Processor (optional Intel® Core™ i7-1185G7 vPro™*) |
|---|---|
| Operating System | Windows 11 Pro |
| RAM | Built-in 16GB RAM (max 64GB RAM*) |
| Graphic Chip | Intel® UHD Graphics, supports Intel® Iris® Xe Graphics when 2 RAM Modules installed |
| Storage | Quick release 512GB NVMe OPAL SSD (with heater). Optional 2nd SSD* |
| LCD | 14.0" Active Matrix (TFT) colour LCD 1920 x 1080 (FHD) LCD with sunlight-viewable glove-enabled touchscreen (up to 1,200cd/m² brightness) |
| Bluetooth™ | 5.1 Class 1 |
| Wireless LAN | Intel® Wi-Fi6 AX201 |
Accessories & Software
AC (MAINS) ADAPTERS
CF-AA5713A2A TOUGHBOOK AC Adapter
CF-AA5713A2A TOUGHBOOK AC Adapter. AC Adapter compatible with FZ-40 / FZ-G2 / CF-20 / CF-31 / CF-33 / CF-53 / CF-54 / CF-D1
