Description
-

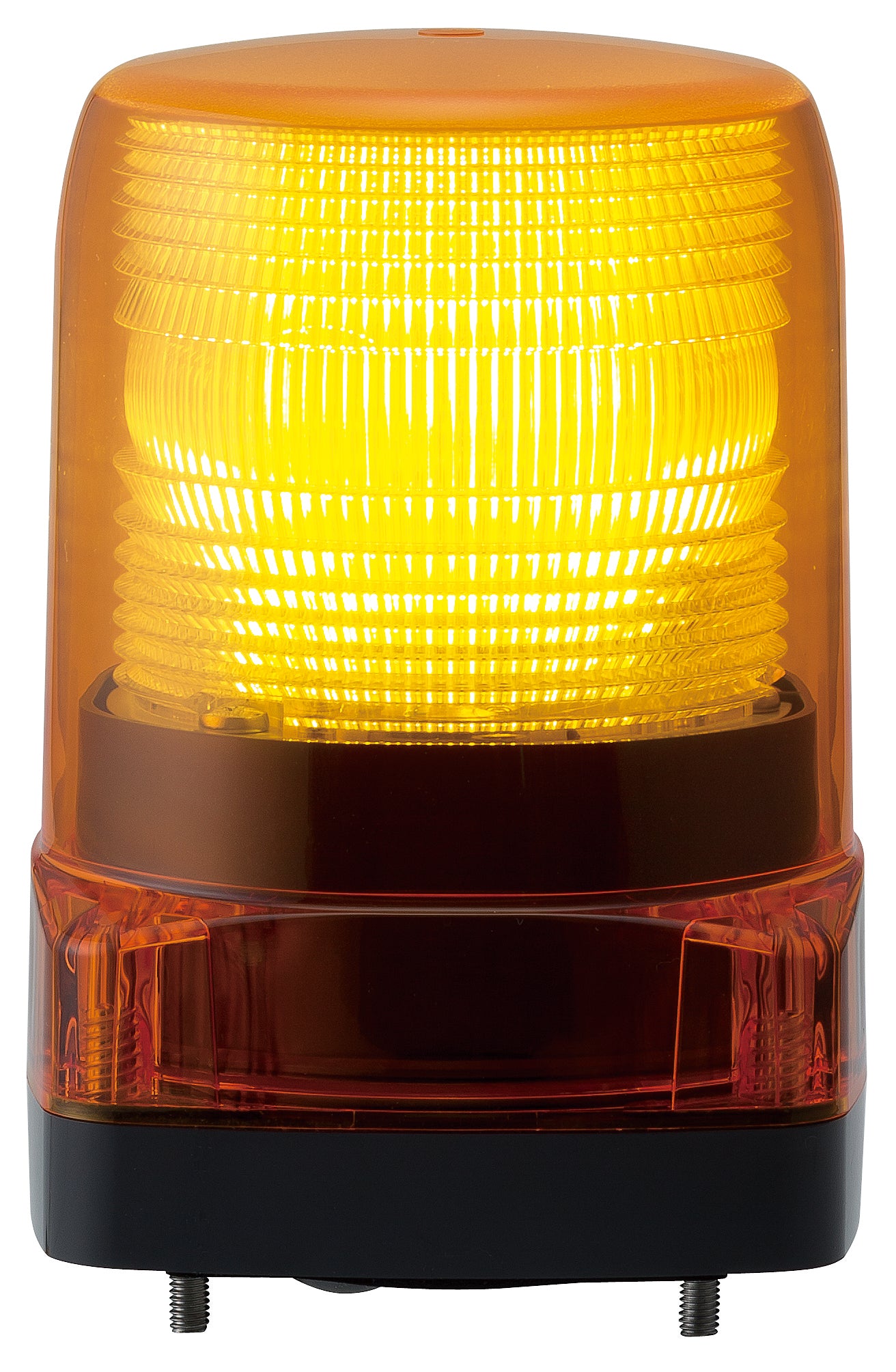

LFH LFK Φ100 LED BEACON I Super High Grade Industrial, Machine, Vehicle LED Warning Light Beacon I PATLITE & SIGNALFX ANZ
ENGINEERED IN JAPAN ULTRA HIGH GRADE - 9G VIBRATION PROOF. - LFK LED Beacon Industrial & Vehicle Warning Light. Suitable for ANY heavy duty applications, Machine, Vehicles, Cranes, Forklifts, Mining, Agricultural Machinery, Car Parks, buildings, construction and more!
-
Product Features
- Available in 12VDC, 24VDC, 48VDC and 90-250VAC
- Five Dome Colors of Red, Yellow, Green, Blue and Clear/White
- Triple Flash (110 fpm ±10%)
- Indoor/Outdoor Use
- IP66 (IEC60529)
- Vibration Resistance of 9G (90m/s2)
- RoHS Directive
- CAN/ULC-S526-M87
- CE Marking (Excluding 48VDC Model)
- UL 1638
- FCC Part 15 Subpart B Class A (Excluding 48VDC Model)
Patlite’s new indoor/outdoor LED Signal Light has superior visibility, even in daylight, with a night-time visibility of 492 feet (150m). The long-life LED offers low maintenance for placement in hard-to-service locations.
The Model LFH LED Signal Light provides about 110 flashes per minute with a triple-flash pattern. It also is designed to resist water (IP66) and is durable for mounting on machinery with its vibration resistance of 9G.
Available with UL certification in 12VDC, 24VDC, 48VDC and 90-250VAC, the LFH has CE markings for the 12VDC, 24VDC and AC90-250VAC types.
| SIZE | - φ100 diameter |
|---|---|
| OPERATING VOLTAGES | - DC 12V - DC 24V - DC 48V - AC 90 - 250V |
| FUNCTIONS | - Dimming - Triple-flash (110 fpm ±10%) |
| MOUNTING | - Direct or use optional brackets |
| BODY STYLE | - For Indoor or Outdoor Use |
| BODY COLOR | - Black Body |
| LIGHT SOURCE | - High-power LED |
| BRAND ORIGIN | JAPAN & USA |
| PROTECTION RATINGS | - IP66 (IEC60529) |
| REMARKS | Colors Available: - Red - Amber - Green - Blue - Clear/White |
| OPTIONS | - SZ-007 Standard Mounting Bracket - SZ-170 High-vibration Resistant Mounting Bracket |
