Description
NEW PATLITE LA6 LA6-3DWJUN LED Signal Tower Stack Light Programmable Indication.

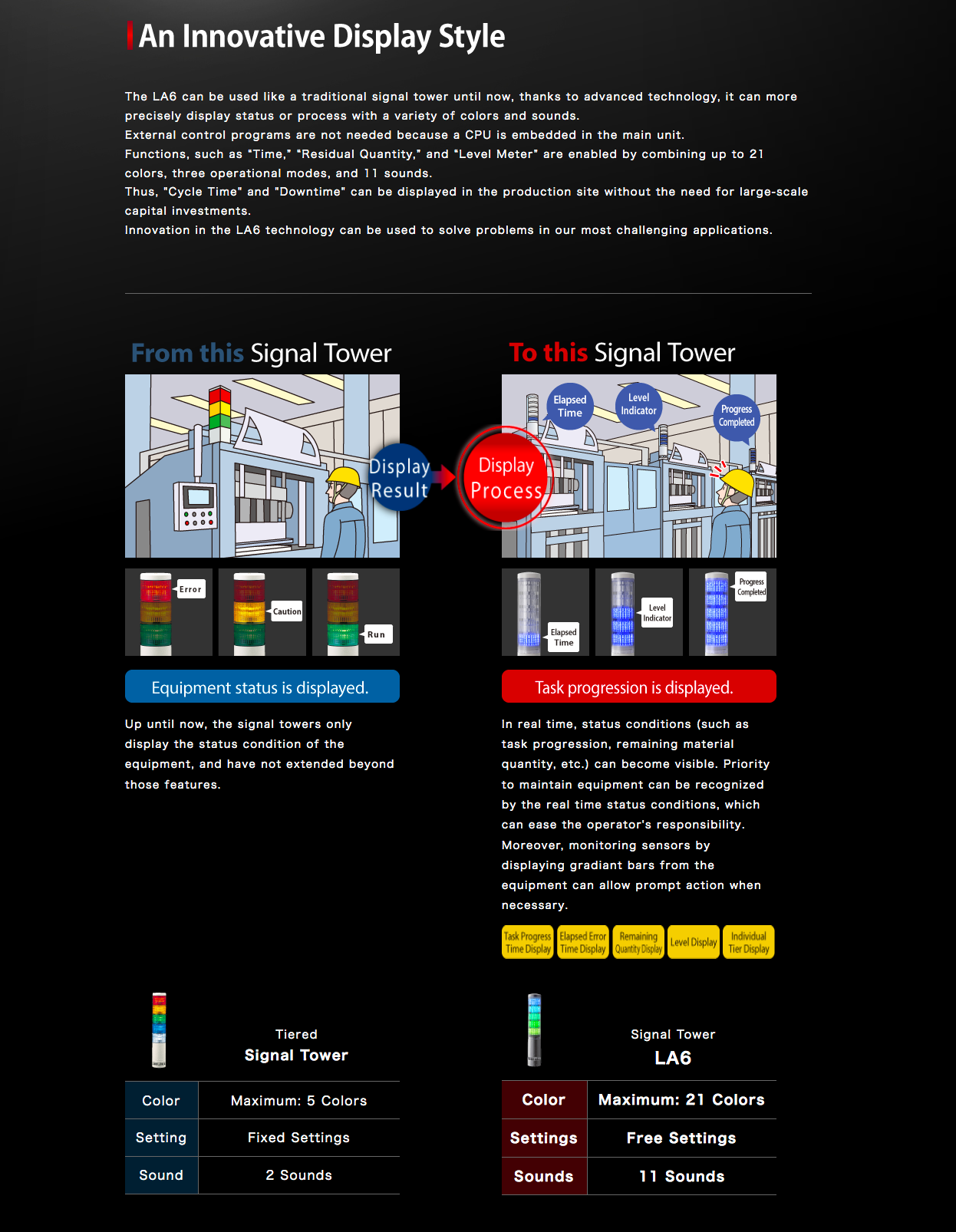

PATLITE’s innovation introduces the new LA6 multi-information Signal Tower, which can be easily manipulated to display various colors and combination of colors in various ways in order to communicate endless applications of “visual information”
-

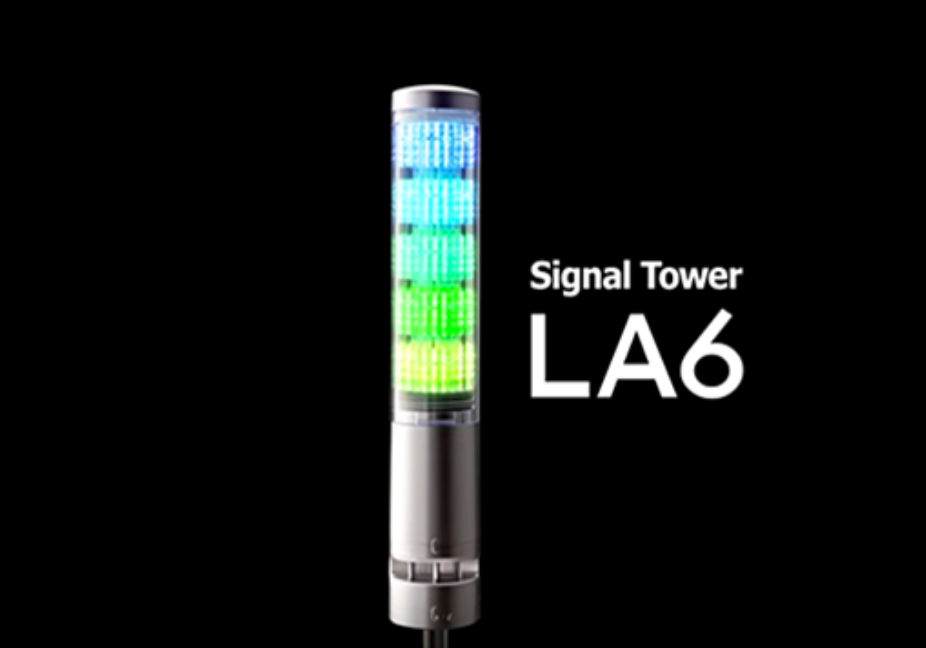

LA6 Programmable LED Signal Tower Light
- PATLITE’s innovation introduces the new LA6 multi-information Signal Tower, which can be easily manipulated to display various colors and combination of colors in various ways in order to communicate endless applications of “visual information” in a manner that is intuitive and easy to understand.
Product Features
• Freely set-up multiple colors to indicate abnormal conditions with a variety of color patterns.
• Program "Operating Modes" to enhance visual status conditions.
• Download complimentary simple and easy programming software to easily control display conditions for customized scenarios
Movie
To download free software from our Exclusive LA6 Webpage, click here!
Model Specifications
| DIMENSIONS | - 60mm Diameter |
|---|---|
| OPERATING VOLTAGES | - 24V DC - 100V - 240V AC （WJ Type Only） |

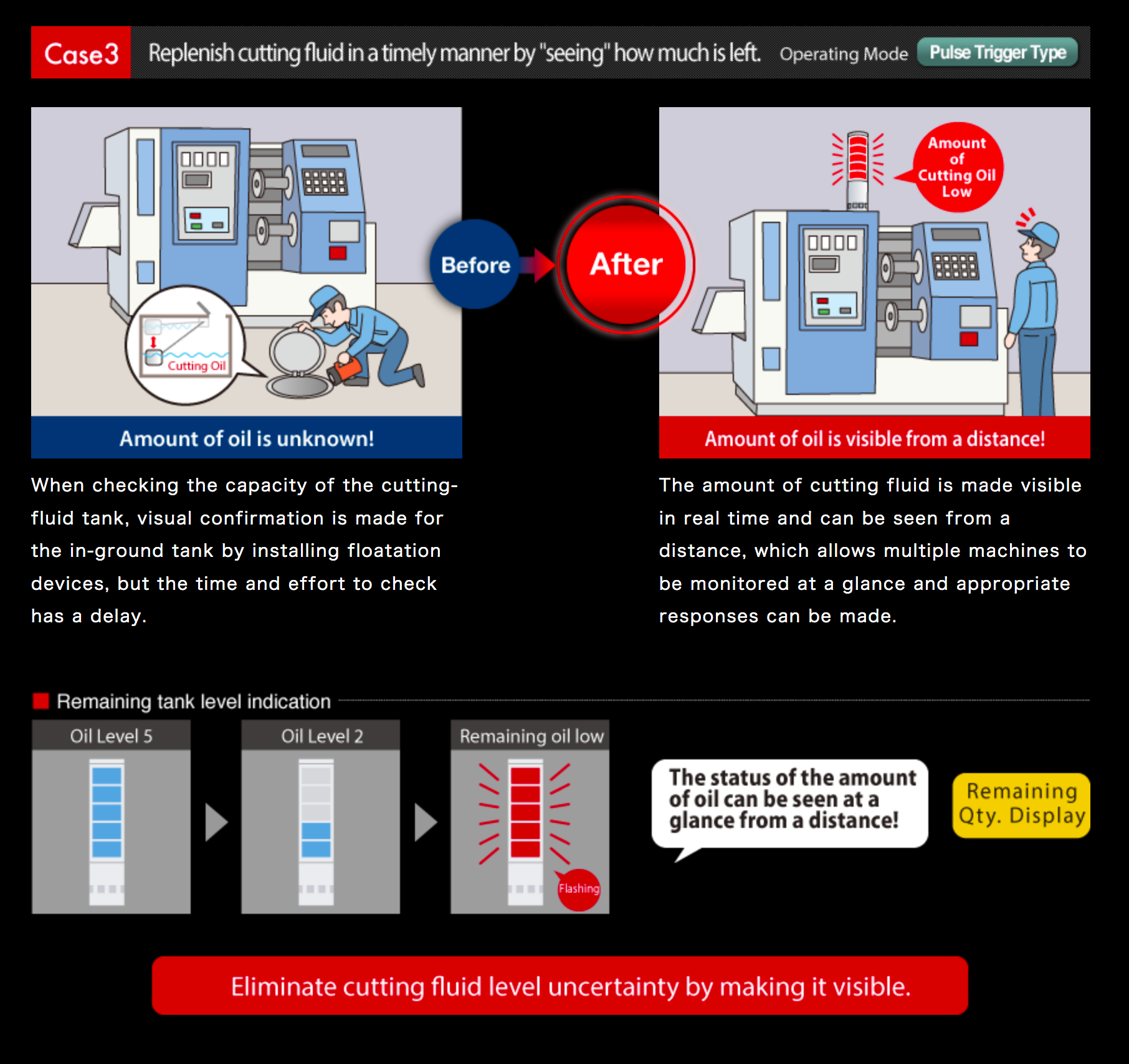

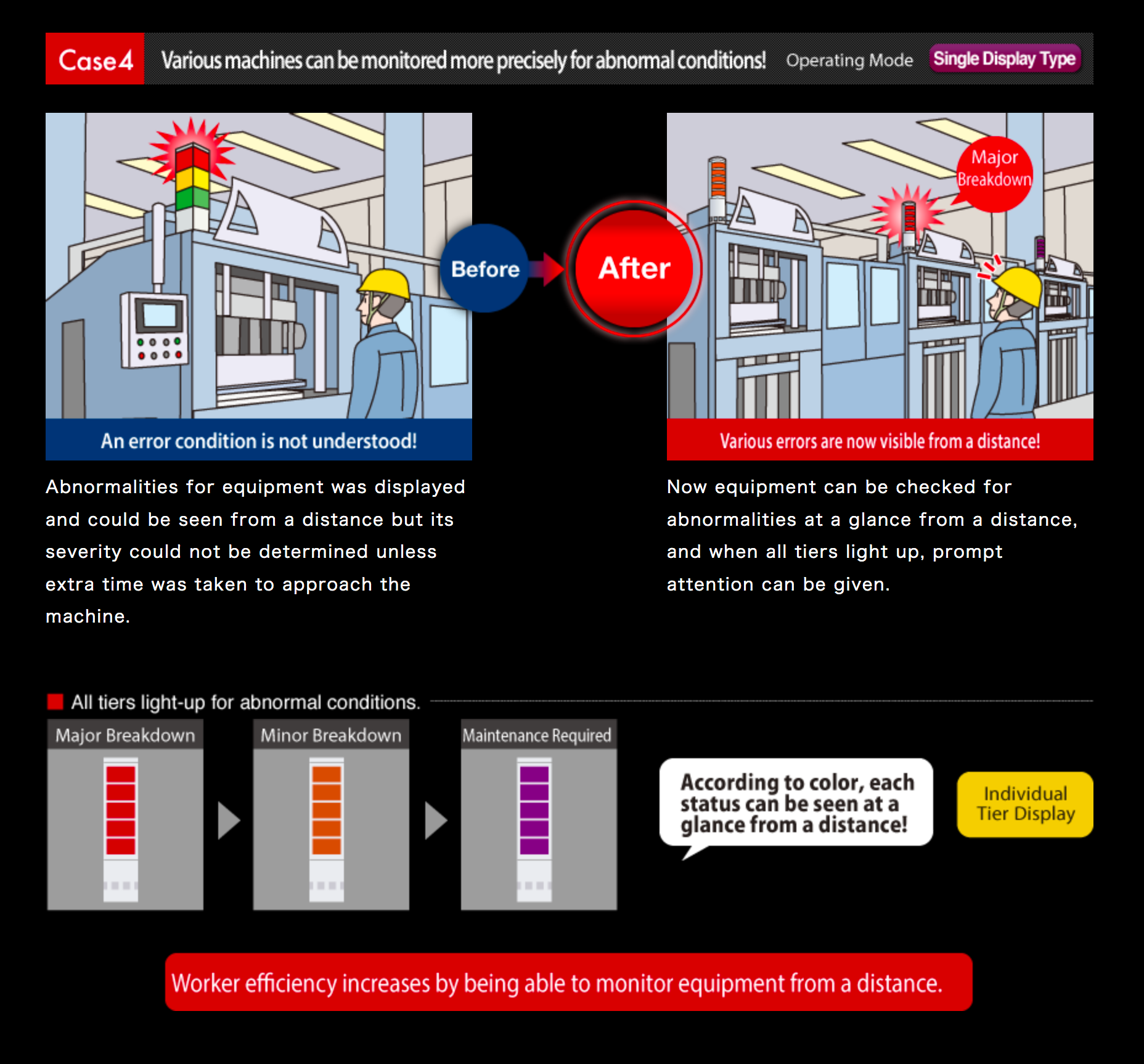

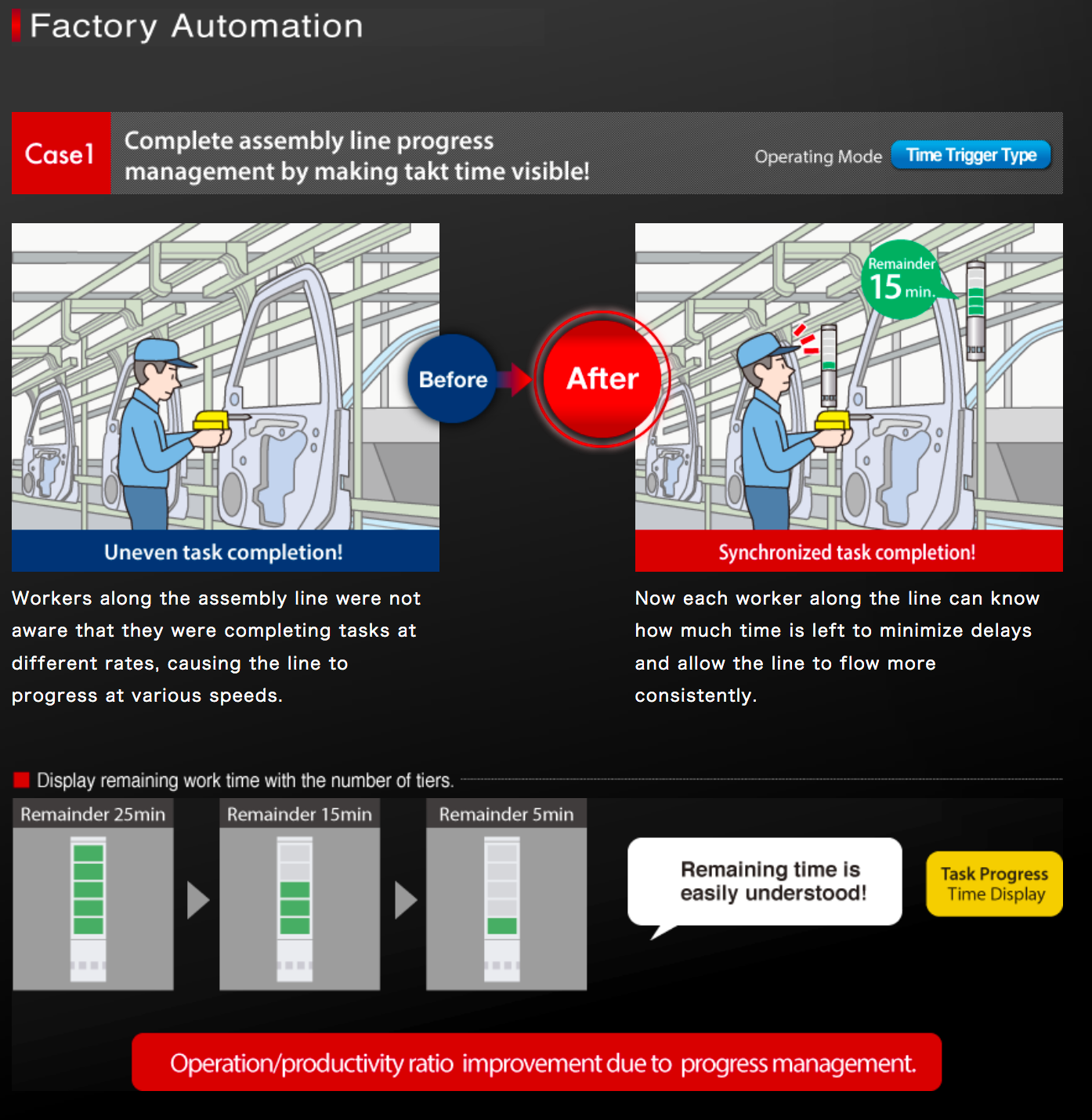

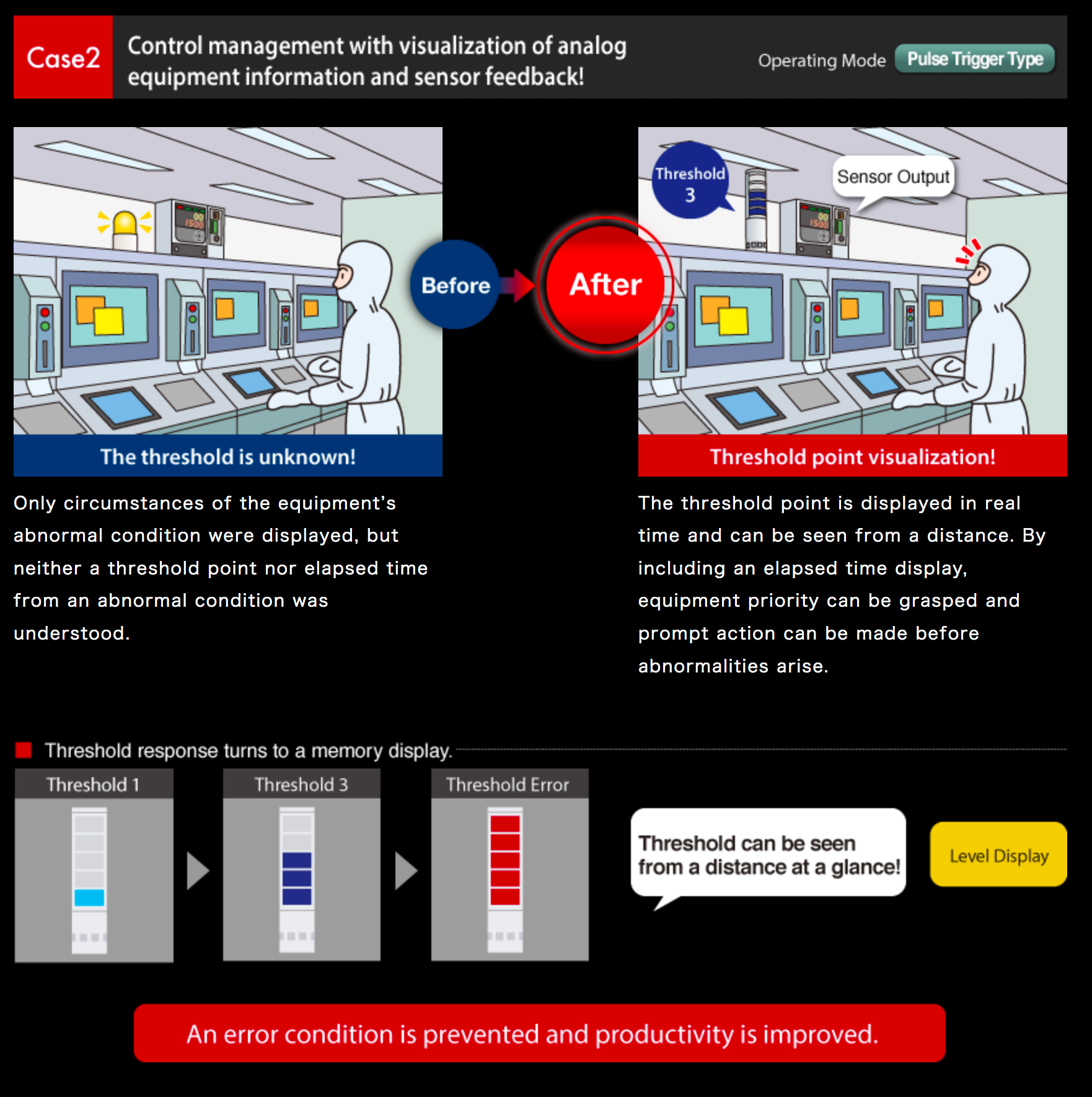

| FUNCTIONS | Operates in three different display modes: - Single Display - Time-trigger Display - Pulse-trigger Display |
| MOUNTING | - Direct Mounting (TN, WJ Type) - Steel Pole Mounting (LJ Type) |
| BODY STYLE | - TN : Screwless Terminal - LJ : Pole with Cable Connection - WJ : Direct Mount with Cable Connection |
| BODY COLOR | - Off-white - Silver |

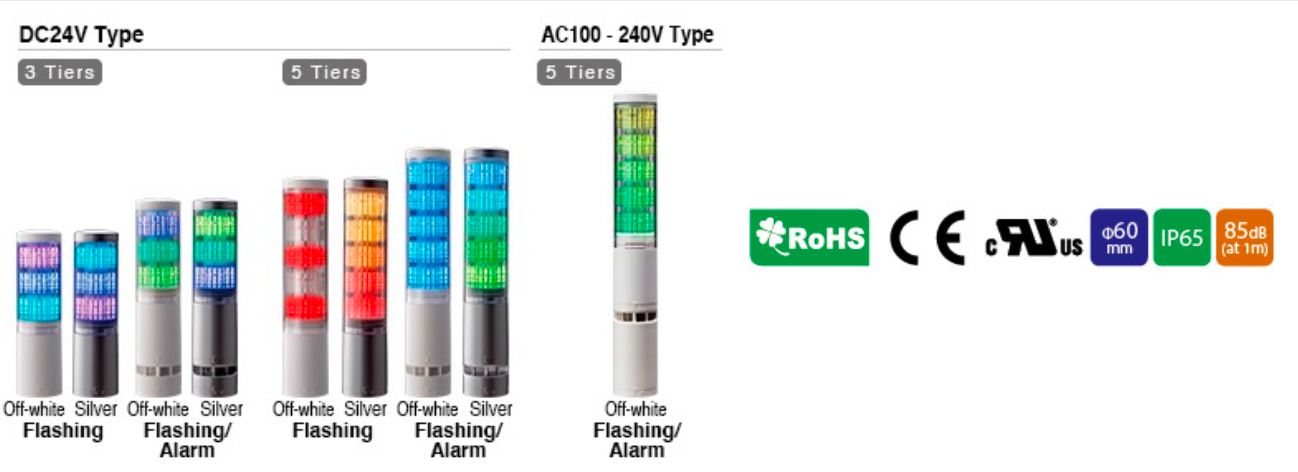

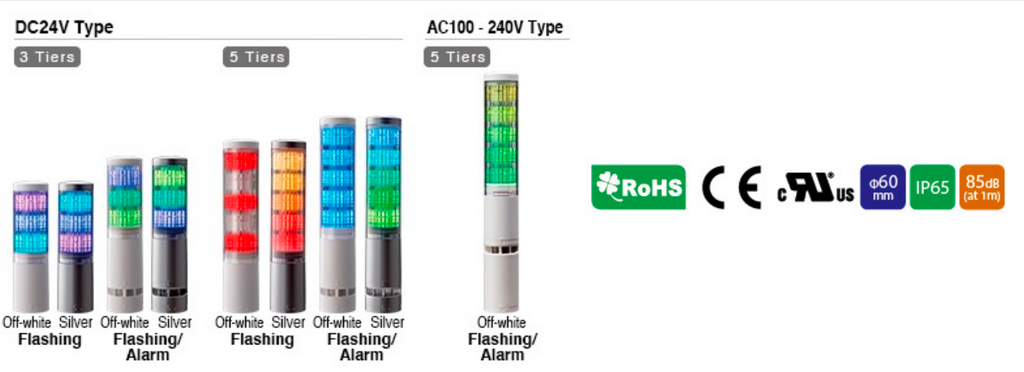

| STACKABLE TIERS | - 3 Tier - 5 Tier |
| MODULE COLORS | Total of 4,960 possible colors |

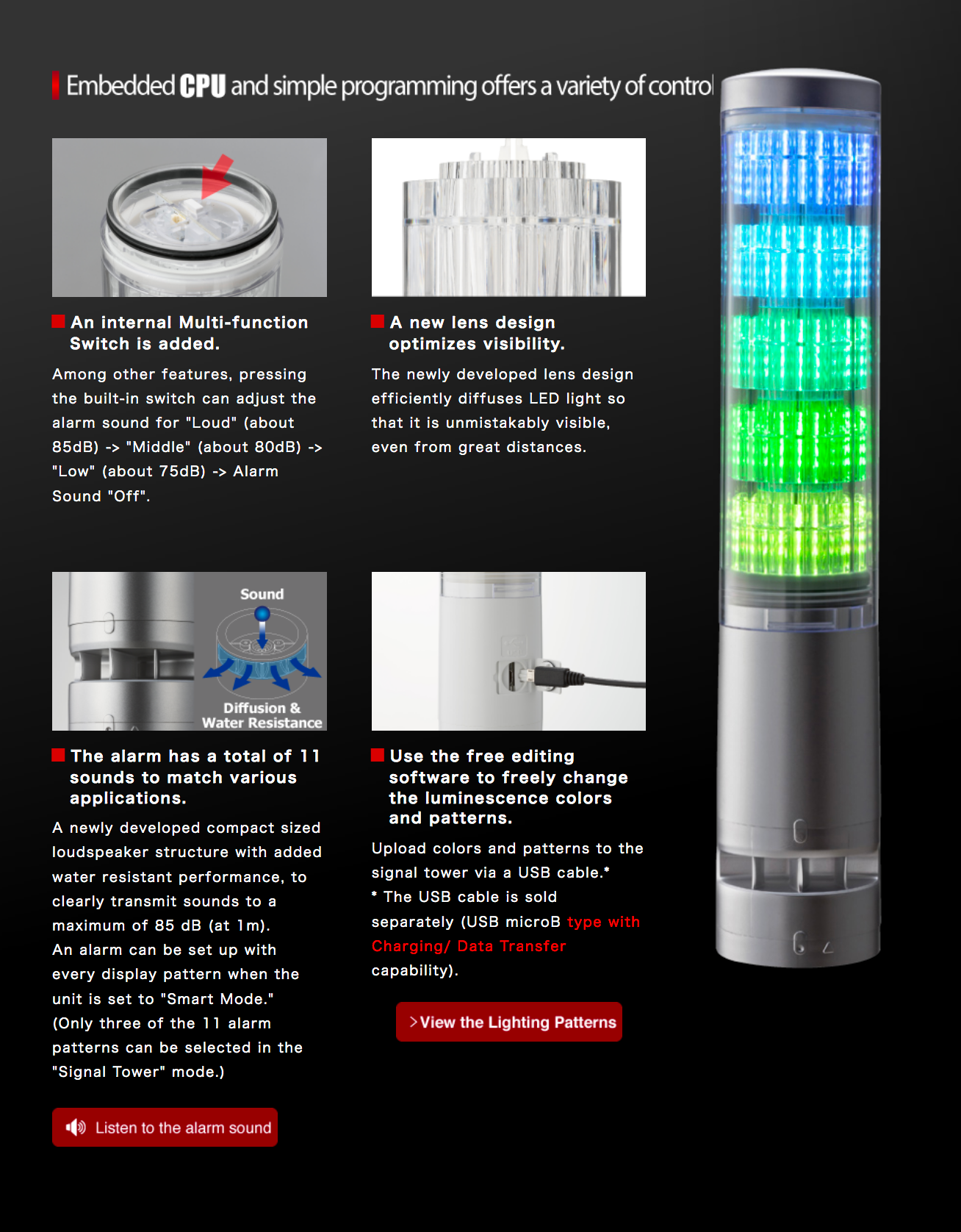

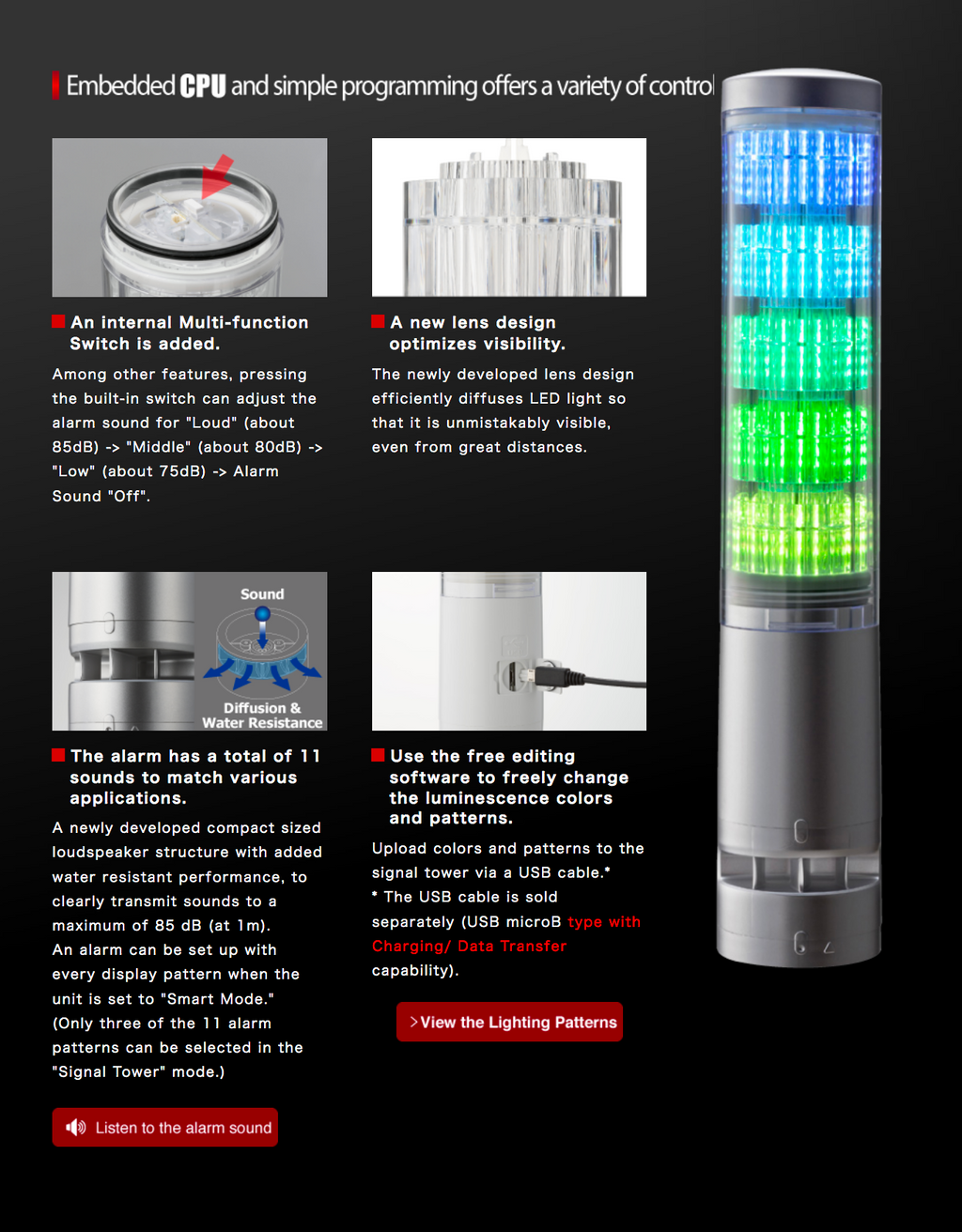

| AUDIBLE STYLE | 11 alarm sounds available |
| CONFORMITY STANDARDS | - EMC Directive - RoHS Conformity - UL 508 - FCC - KC - CE |
| PROTECTION RATINGS | - IP 65 - IP54 with Alarm |
| REMARKS | - Free downloadable application software - UL Recognized Components (24V type only) |
