Konica Minolta Patlite LR4 LED Status Indication Alert Light Signal Tower Light 300mm Pole Mount for Pringing Machines

Official Konica Minolta Printing Machine LED Status Indicationg Signal Tower Light manufactured by PATLITE.

LR4 LED Alert Lights Signal Tower Light for Printing Machines

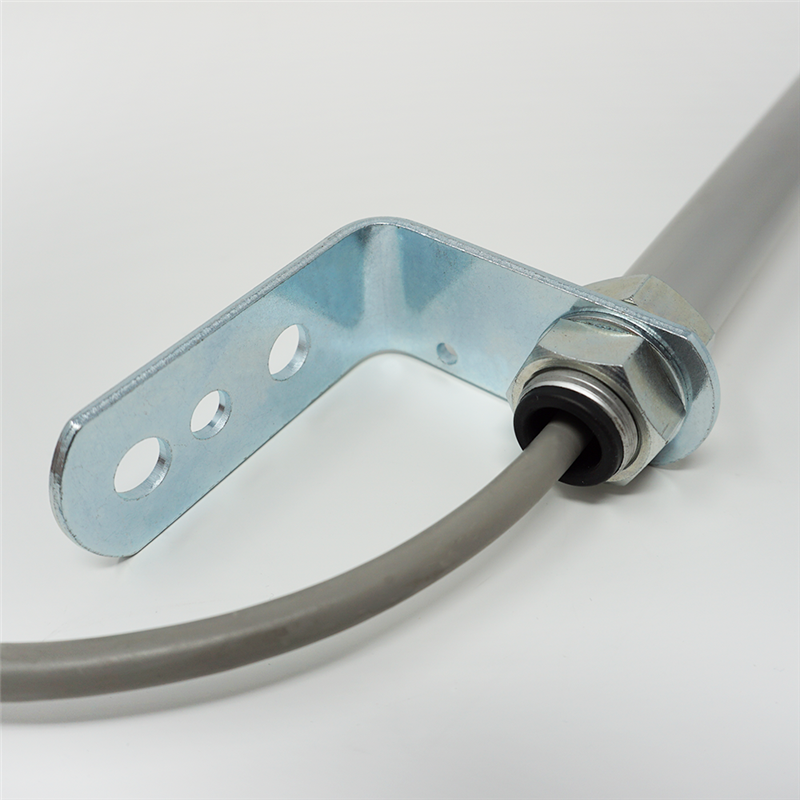

• LR4-402LJNW-RYGB : 40mm 4-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Continuous, Off-white
• LR4-402LJBW-RYGB : 40mm 4-tier Signal Tower, 40mm 4-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white
• LR4-302LJNW-RYG : 40mm 3-tier Signal Tower, 40mm 4-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Off-white
• LR4-302LJBW-RYGB : 40mm 3-tier Signal Tower, 40mm 4-tier Signal Tower, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white

Suitable for all Konica Minolta, HP, Hitachi, Honeywell, Omron and any brand printing solution.  Application examples listed below.  An integral part of Business Printing Systems and Solutions for efficient and optimum identificagtion and remedy of printing production lines and operations. Essential Kaizen Solution for all printing requirements.

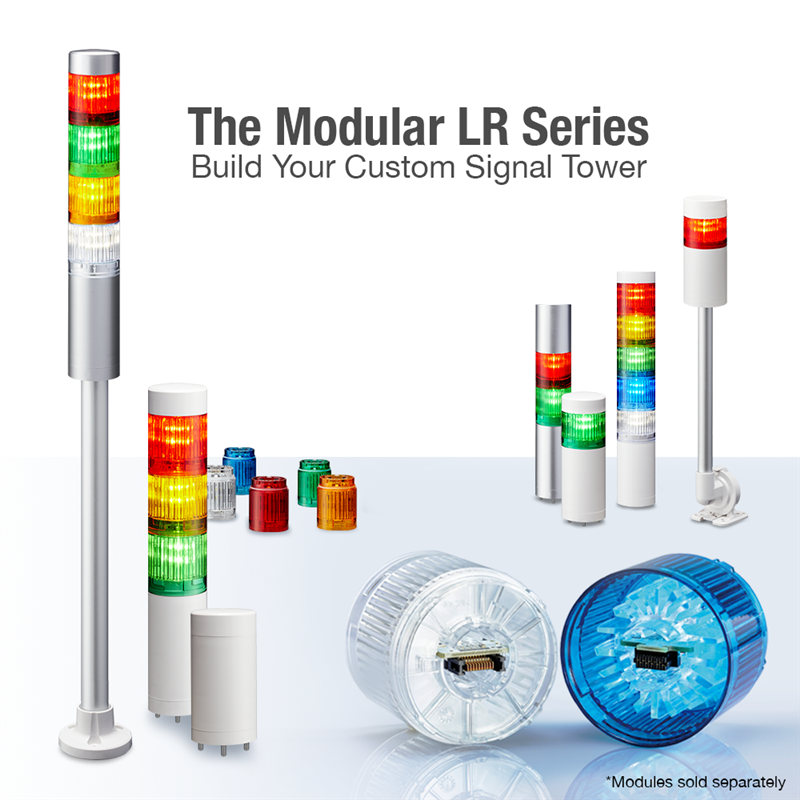

Options include various colours, Red, Yellow, Green, Blue, Clear and combination of those colours with customizable stack levels from 1 to 5 tiers.

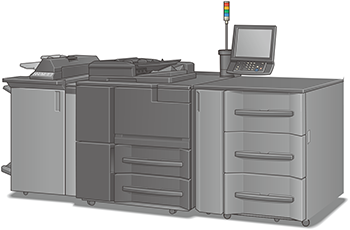

Business Printing Machine Alert Status Indication Example

Status indicator light (Light color)	Machine status	Remedy
Red	Indicates machines stoppage due to a problem : paper jam, paper or toner replenishment, or scrap disposal.	Check the machine status on the control panel and remedy as per specific machine type, issue, and manual instructions.
Yellow	Indicates that a toner replenishment message is displayed.	Check the machine status on the control panel and action remedy.
Green	Indicates that the machine is currently printing.	No action required
Blue	Indicates that the machine is ready to print.	No action required
No Light	Main power switch or sub power switch off OR machine in warm-up mode OR the door is open.	When the status indicator light does not light in states other than those shown on the left, check the message on the control panel.

*** from Konica Minolta Europe BIZHUB Website - Status Indicator Light: Displaying the Machine Status (konicaminolta.eu)



Description

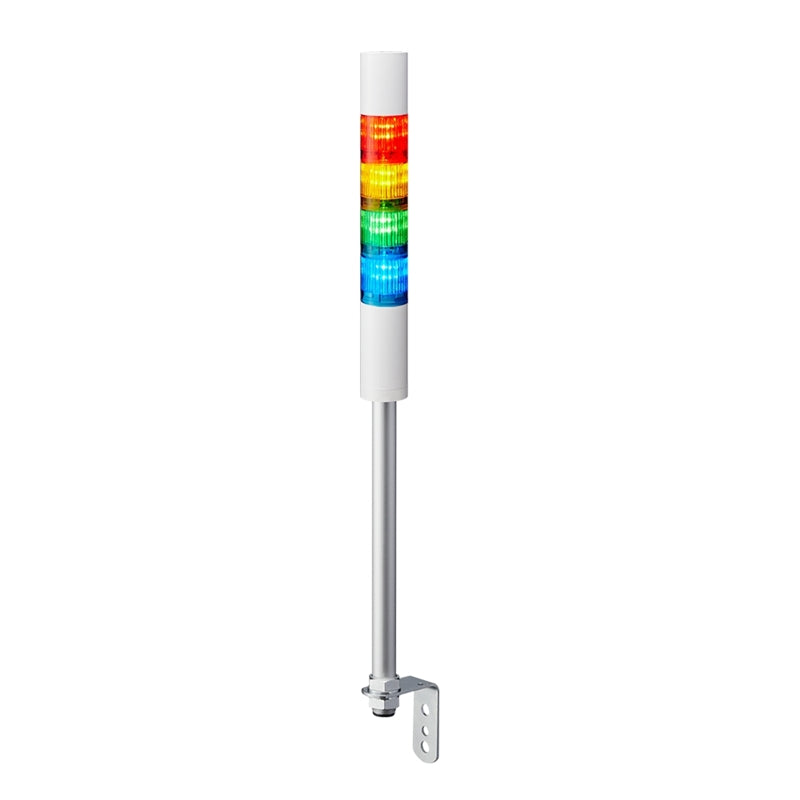

40mm, 4-tier Stack Light, UL, IP54, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white Body with Red, Amber, Green and Blue LED Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output) Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR4: 85dB at 1m) A sleek, smooth form factor and a rugged body construction for performance in harsh environments. A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules

Technical Specification

Operating Ambient Temperature -20℃ - +50℃ Operating Humidity Range 90% RH or less, no condensation Storage Temperature Range -30℃ - +60℃ Storage Humidity Range 90% RH or less, no condensation Mounting Location Indoor Use Mounting Direction Upright Position Protection Rating IP54 Environmental Conditions Upright Position Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.) Flash Rate 60 ±2 Flashes / min Sound Level LR4 Typ. 85dB Sound Reduction* ab. -10dB reduction Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance Buzzer Sound 4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound Transistor Output NPN / PNP (AC100 - 240V is NPN only) Conformity Standards - UL 508, CSA-C22.2 No.14 - FCC Part 15 Subpart B Class A - RoHS Directive (EN 50581) - EMC Directive (EN 61000-6-4, EN 61000-6-2) - KC (KN 61000-6-4, KN 61000-6-2) * Dependent on DIP Switch Setting DOWNLOAD LR_Specifications_24V_DC Type (En).pdf LR_Specifications_LED Unit (En).pdf LR_Specifications_Buzzer Unit (En).pdf
