Description

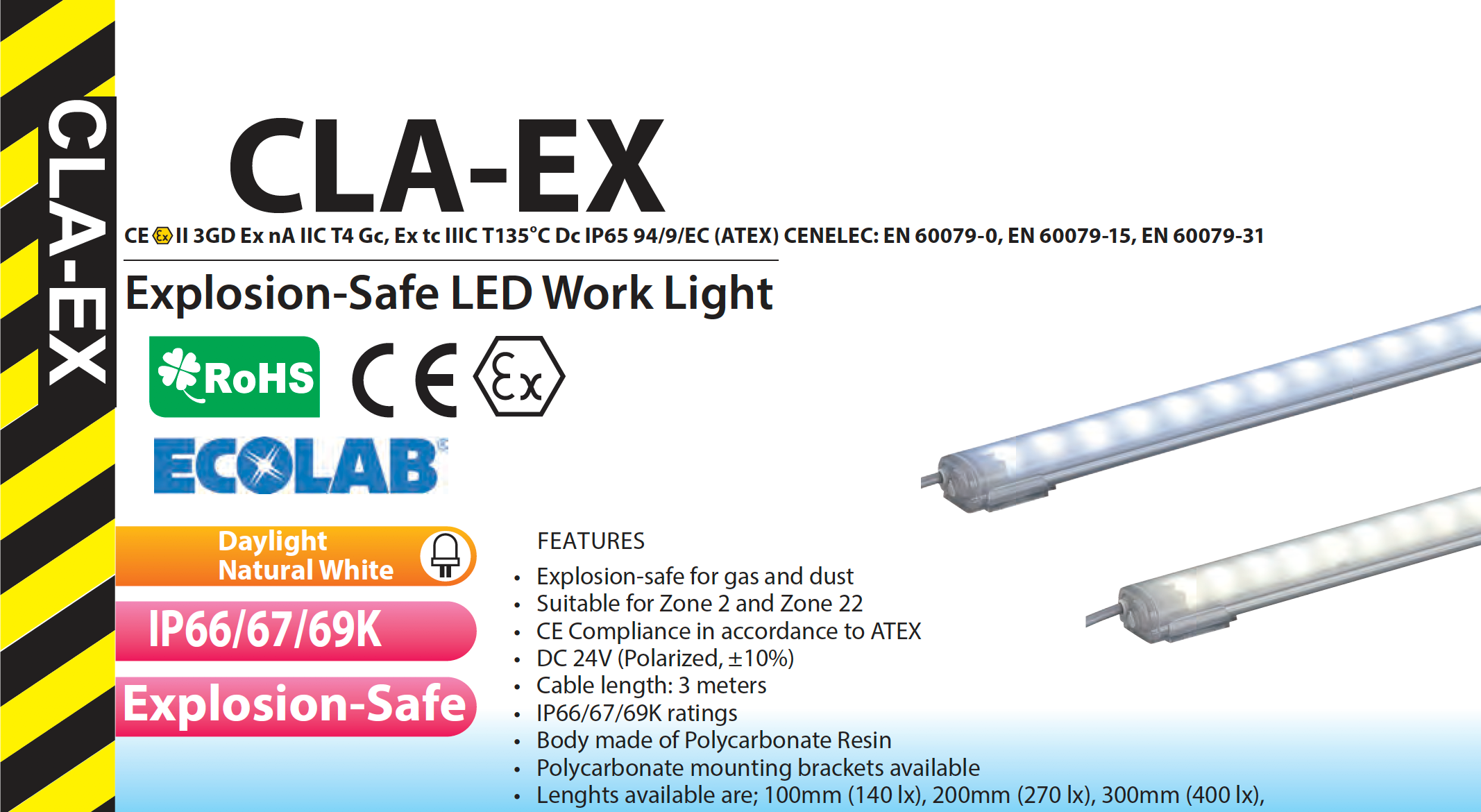

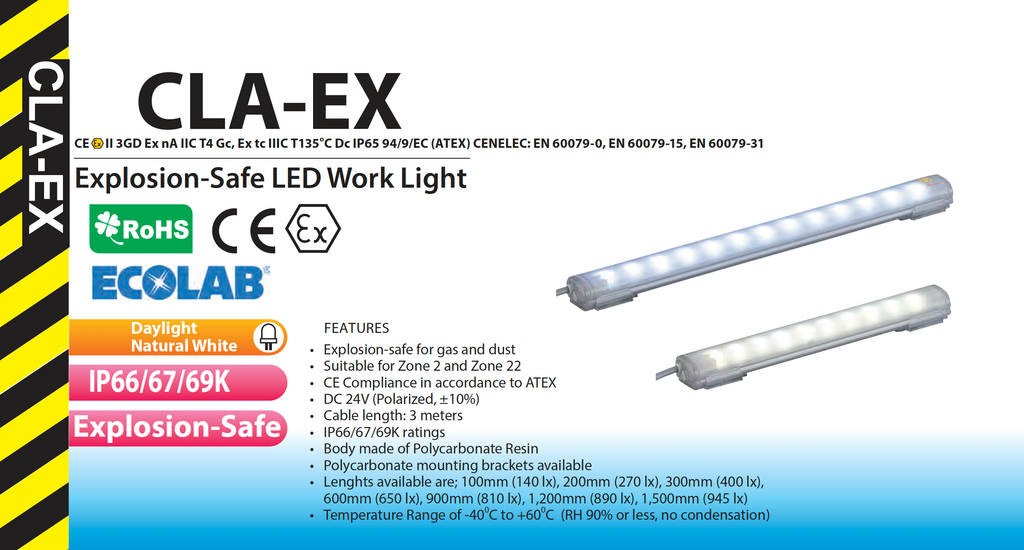

CLA/EX LED Lighting Work light Intrinsically Safe Explosion Proof Hazardous Area Lights
Intrinsically-safe CLA Series
As a new addition to the CLA Series, PATLITE & SIGNALFX AUSTRALIA introduces an Intrinsically-safe CLA with ECOLAB certification, in addition to Ex standards for Zone 2 and Zone 22
Product Features
- Explosion-safe for Gas and Dust
- Suitable for Zone 2 and Zone 22
- CE Compliant in accordance to ATEX
- Voltage rating of 24V DC (polarized)
- Temperature range of -40℃ to +60℃
- Protection ratings of IP66, IP67 and IP69k
- Three different lengths to select among 100mm, 200mm and 300mm
- Luminous intensity (at 50cm) for the 100mm at 140 lux; 200mm at 270 lux; 300mm at 400 lux
- Body and lens material all made of polycarbonate

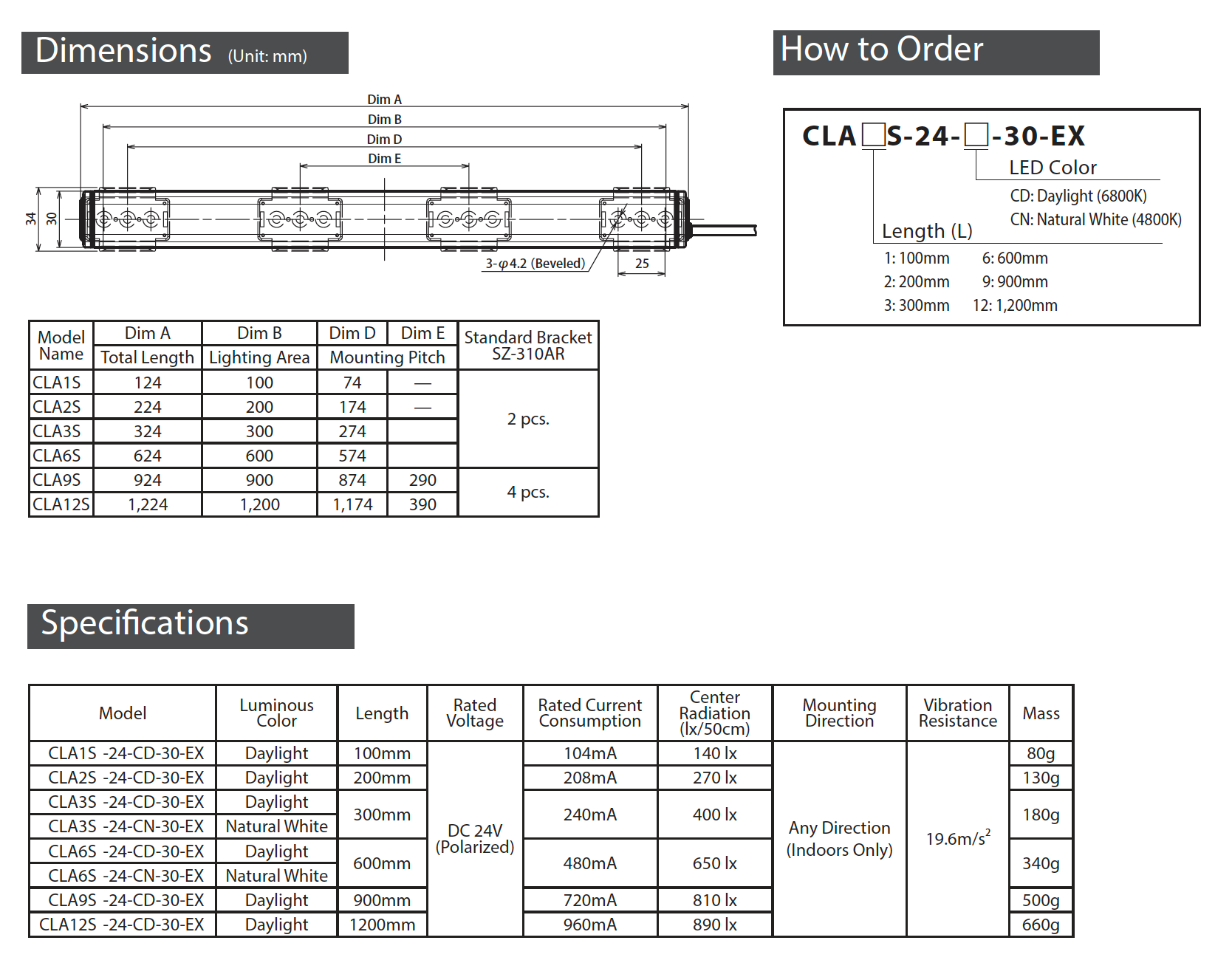

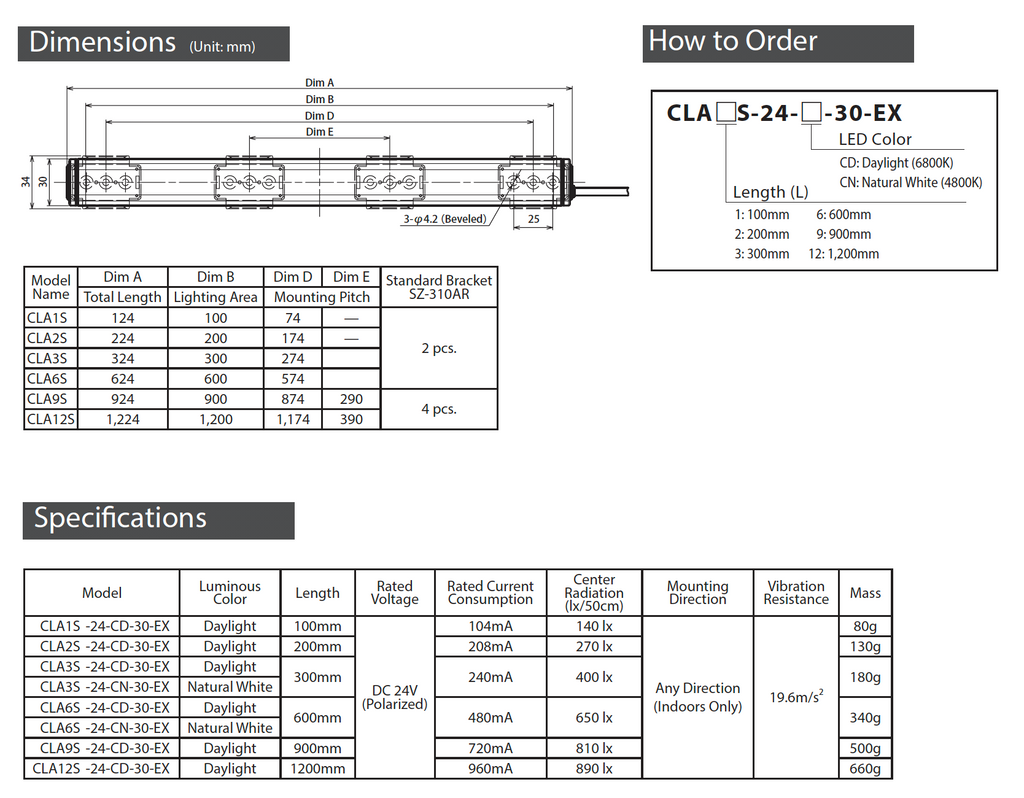

Model Specifications
| DIMENSIONS |
- 100mm -200mm -300mm - 600mm - 900mm - 1200mm |
|---|---|
| OPERATING VOLTAGES | - 24V DC (Polarized) |
| BODY STYLE | - Polycarbonate |
| LENS MATERIAL | - Polycarbonate Resin |
| CONFORMITY STANDARDS | - ECOLAB - RoHS - CE Marking - Ex |
| PROTECTION RATINGS | - IP66 - IP67 - IP69k |
