PATLITE LR7-02KTNW 24V DC Base Body Unit IP65, NEMA TYPE 4X, 13, 3 Bolt Mount, Extended Pole Mount, LR7 LED Signal Tower Light Parts Compatible
Roll over image to zoom in Click on image to zoom
PATLITE LR7-02KTNW 24V DC Base Body Unit IP65, NEMA TYPE 4X, 13, 3 Bolt Mount, Extended Pole Mount, LR7 LED Signal Tower Light Parts Compatible

PATLITE LR7-02KTNW 24V DC Base Body Unit IP65, NEMA TYPE 4X, 13, 3 Bolt Mount, Extended Pole Mount, LR7 LED Signal Tower Light Parts Compatible

Save $105.50
PATLITE
Brand Model Compatibility: PATLITE LR7
Diameter: 70mm
Body Colour: Off White
Price:
$89.50 AUD $195.00 AUD

Description

For ANZ parts selection assistance please email info@patled.com.au directly.

LR7 Base Unit with both Direct 3 Bolt Top Mounting Capability OR Extended Pole Mount capability built into 1 single base unit.  Order in place of LR7-02WTNW unit when requiring extended poles to increase visibility height. Please contact us directly so we can assist you with clarifying which parts are required for your specific requirement.

We can assist in making optimum selection based on visibility, mounting, voltage, supply availability requirements.

Email info@patled.com.au directly.

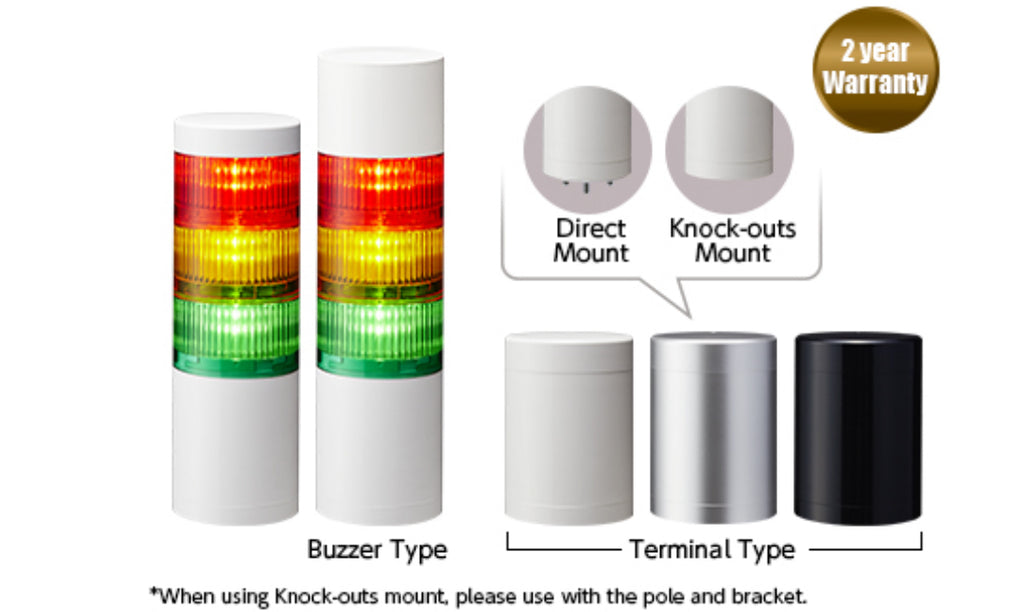

Built-in knock-out holes make it easy to convert the LR7 series signal towers from pole mount to direct mount. Removable screwless terminal simplifies the wiring process.

  • I/O Control
  • Signal Tower
  • Φ70
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 90dB
  • Indoor
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White
    • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
    • Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 12V DC: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
    • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
    • A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
    • Rated voltage: 24V DC.
    • Standard body color: Off-white. Silver and black bodies available as components only.
    • Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT).
    • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).

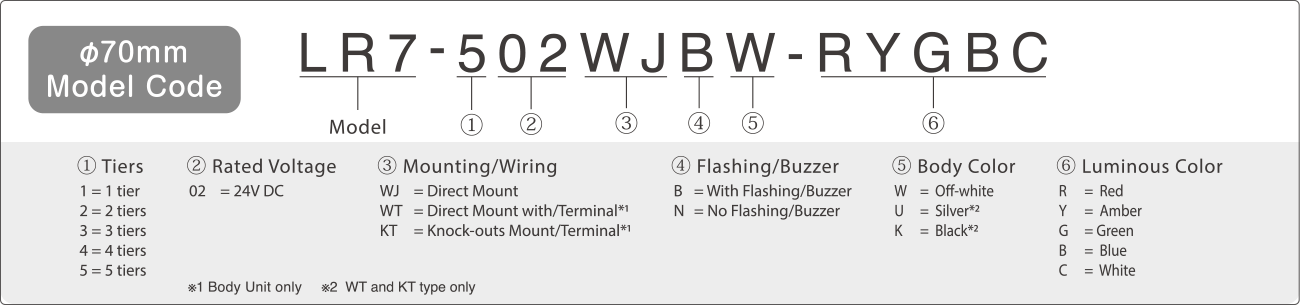

    Model Code



    Specifications

    Operating Ambient Temperature -20℃ ~ +50℃
    Operating Ambient Humidity Less than 90% (No condensation)
    Storage Temperature Range -30℃ ~ +60℃
    Storage Humidity Range Less than 90% (No condensation)
    Mounting Location Indoor Only
    Mounting Direction Upright
    Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
    Environmental Condition Upright Position
    Insulation Resistance More than 1MΩ at 500V DC between live part and non-current carrying metallic part
    Withstand Voltage 500V AC applied for 1min between live part and non-current carrying metallic part without breaking insulationa
    Flashing Rate 60±2 Flashes Per Minute
    Sound Pressure Level LR7: Typical 90dB
    Sound Reduction*2 Approx. -10dB
    Environmental Condition Buzzer sound No.4(Sweep) was measured from the total circumfrence of the Buzzer Unit at 1m
    Buzzer Sound 4 patterns*2
    No.1: Rapid Intermittent Beep / 3378㎐
    No.2: Continuous Beep Sound / 3378㎐
    No.3: Rapid Hi-Lo / 2016㎐ & 3012㎐
    No.4: Sweep Sound / 1000Hz - 4032Hz
    Transistor Output NPN / PNP
    Conformity Standards
    • UL 508, CSA-C22.2 No.14
    • FCC Part 15 Subpart B Class A
    • RoHS Directive (EN IEC 63000)
    • EMC Directive (EN 61000-6-4, EN 61000-6-2)
    • KC (KN 61000-6-4, KN 61000-6-2)*3

    *1 LJ Type is IP54
    *2 Dependent on DIP Switch Settings
    *3 Except KT, Assembly Model WT
