LS7 LED SIGNAL TOWER LIGHT I PATLITE LS7-502SFBWH-RYGBC IP Rated and BEST for Clean rooms, Scientific, Food & Beverage, CNC Machinery, any building or infrastructure projects where Aesthetically pleasing design and visuals are required, either for design or to Value-add to existing assets and safety process.
LS7 LED Signal Tower
Patlite & SignalFx offers a "Smart and Smooth" Signal Tower to its lineup, the "LS7". By changing the surface of the body into a smoother form, the adhesion of water and dust is reduced. The structure no longer exposes any screws, shafts or other metals to be adaptable for various environments. With the state-of-the-art inner lens design, the LED emits a sharper, more efficient light. The sound frequence of the optional buzzer can "cut through" the sound from operating machinery that would normally drown out other buzzer sounds. The LS7 comes in a 3 tier or 5 tier model with an assortment of options, including the popular M12 connector.

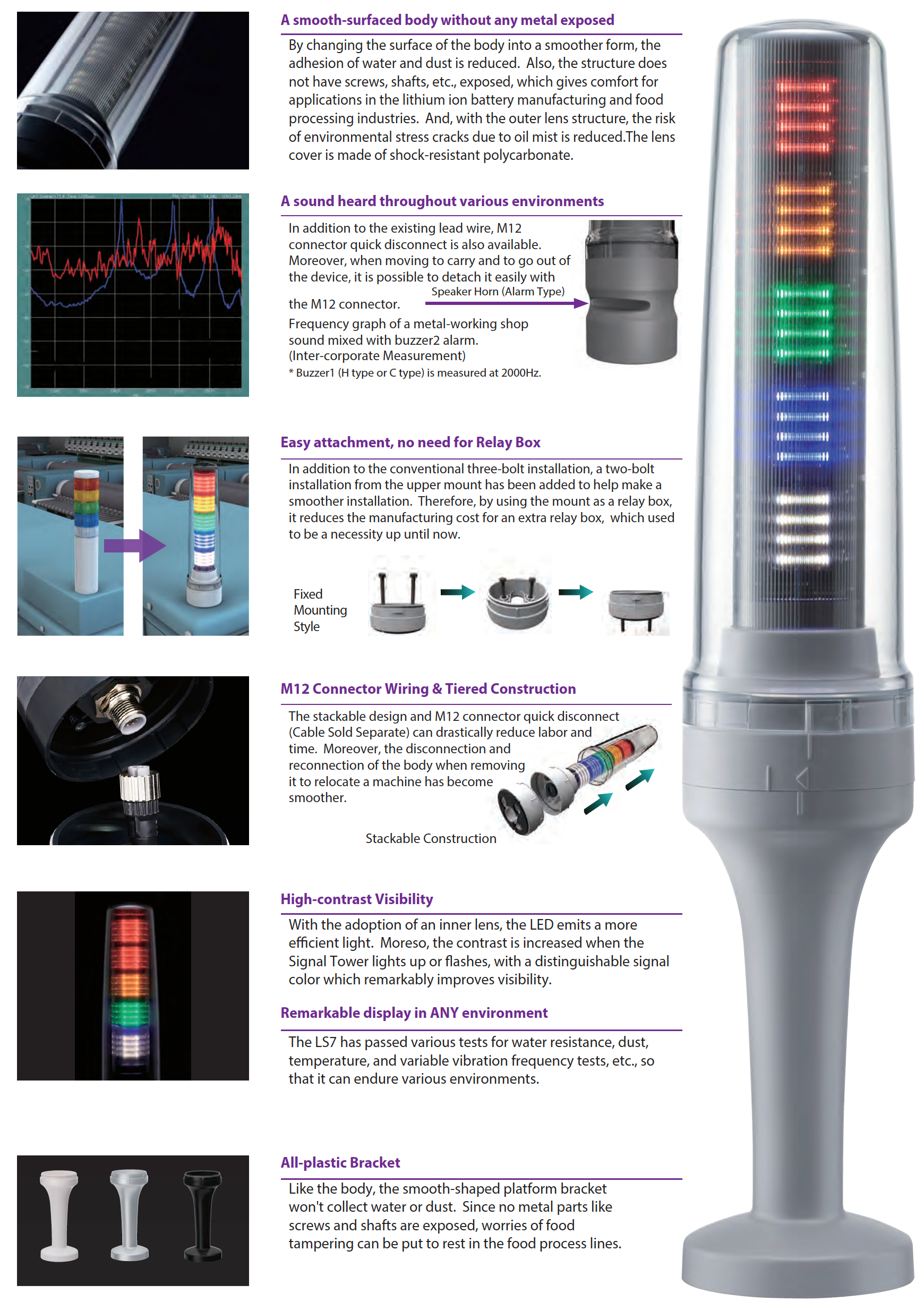

Product Features
・A smooth-surfaced body which does not expose any metal
・The lens cover is made of shock-resistant polycarbonate.
・A buzzer sound heard through various environments
・High-contrast Visibility
・Remarkable Display in ANY Environment

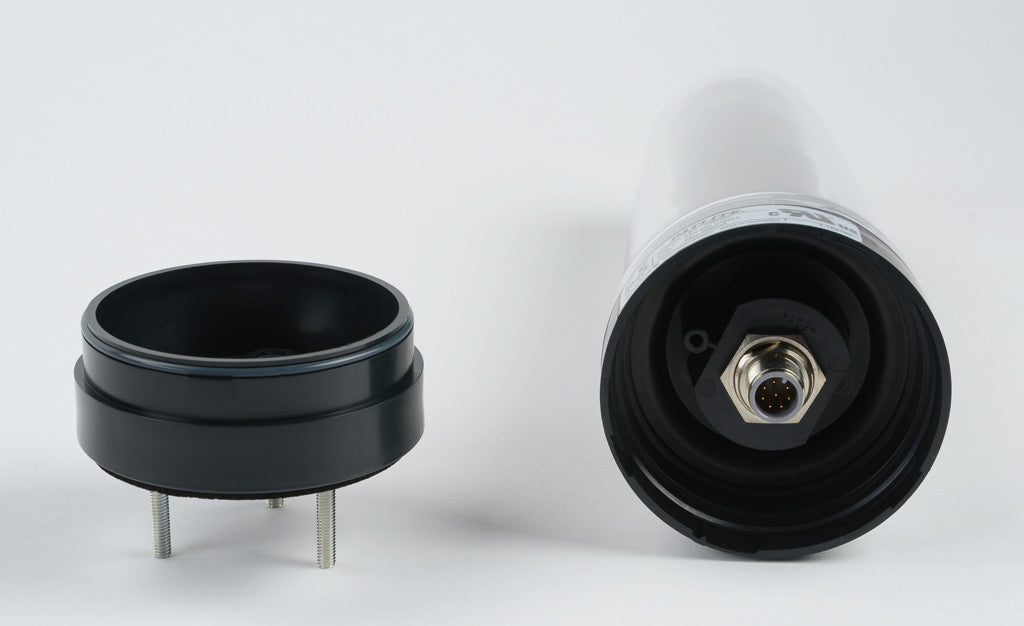

・M12 Connector Wiring & Stackable Construction
・Easy Attachment & no need for a Relay BOX
・All Plastic Bracket
Movie
Model Specifications

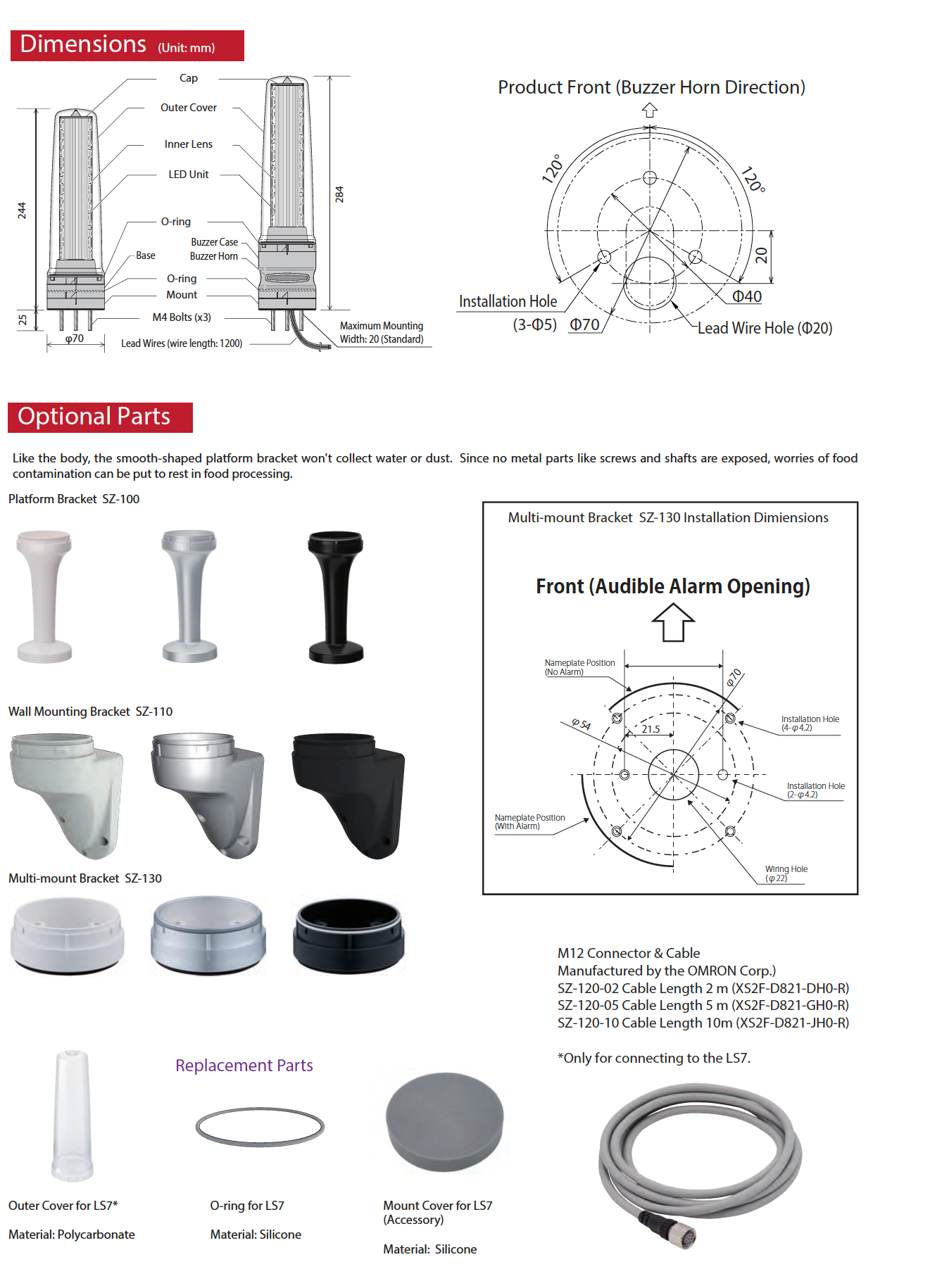

| DIMENSIONS | - 70mm Diameter |
|---|---|
| RATED VOLTAGE | - 24V DC |
| MOUNTING | Platform Bracket - SZ-100 (Off-white) - SZ-100-D (Dark Gray) - SZ-100-S (Silver) Wall Mounting Bracket - SZ-110 (Off-white) - SZ-110-D (Dark Gray) - SZ-110-S (Silver) |
| BODY STYLE | H-type - Pre-assembled, pre-wired C-type - M12 Connector |
| BODY COLOR | - Body: Off-white - Body: Dark Gray - Body: Silver |
| STACKABLE TIERS | - 3 Tiers - 5 Tiers |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear/White |
| AUDIBLE STYLE | Buzzer 1: - Lead Wire Type (Intermittent beep1) - M12 Connector Type (Continuous Beep) 82dB (at 1m) Buzzer 2: - Lead Wire Type (Intermittent beep2) - M12 Connector Type (None) 85dB (at 1m) |
| CONFORMITY STANDARDS | - CE Marking (24V only) - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS |
| PROTECTION RATING | - IP65 (Illumination Type) - IP54 (Buzzer Type) |
| SIZE | 1 |
