Description
- CWK LED CNC Machine Vision Inspection
- Water and Oil Resistant, long-life ultra-bright LED Worklight with IP66G and IP67G ratings designed exclusively for the machine tooling industry. With its compact and environmentally resistant design, its imperviousness to flying scrap metal and oils makes it a perfect solution for tooling machinery.
Product Features
- Impervious to Water and Oils

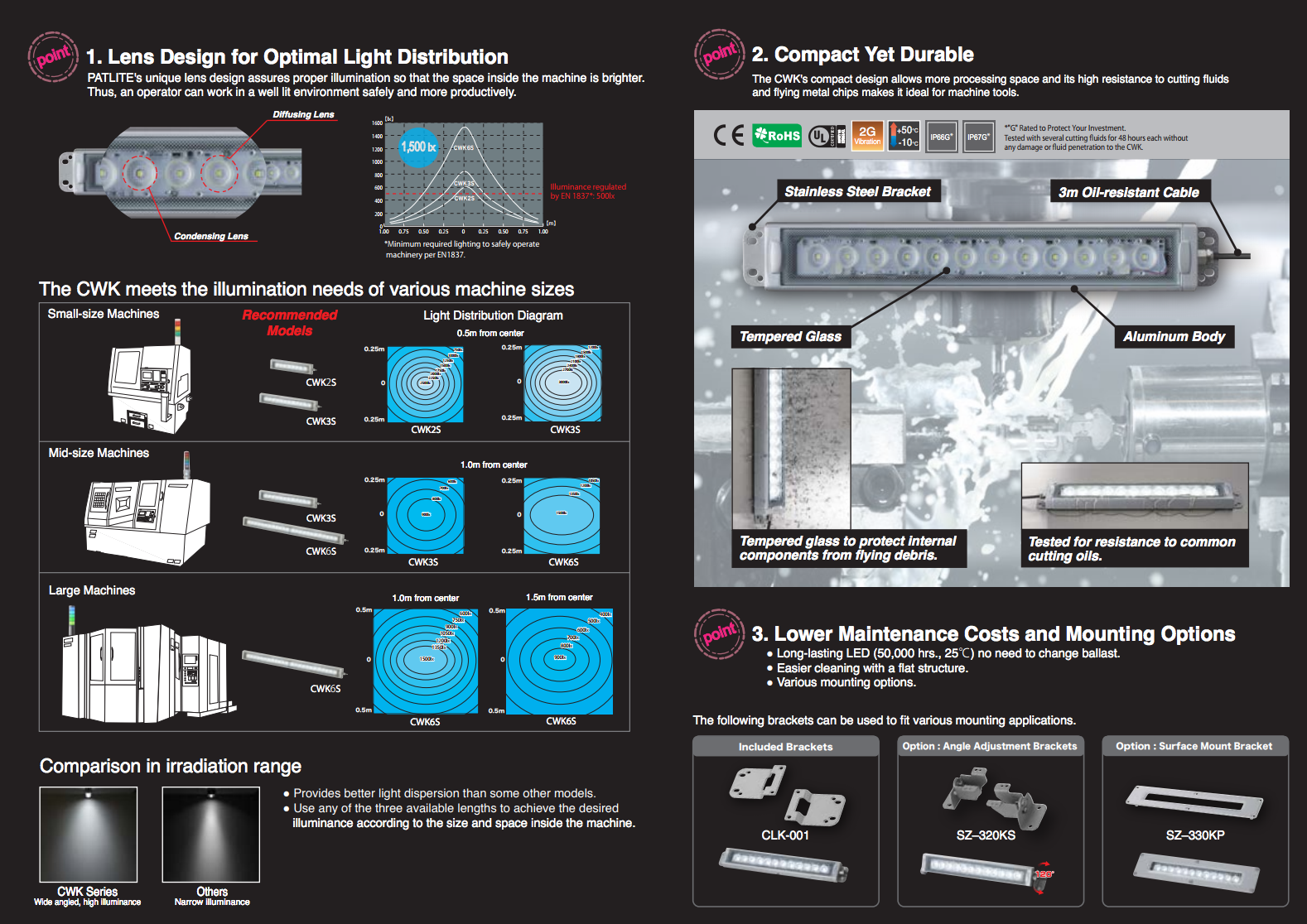

- Includes PATLITE's own 'Optimal Lens' design to widen light distribution.

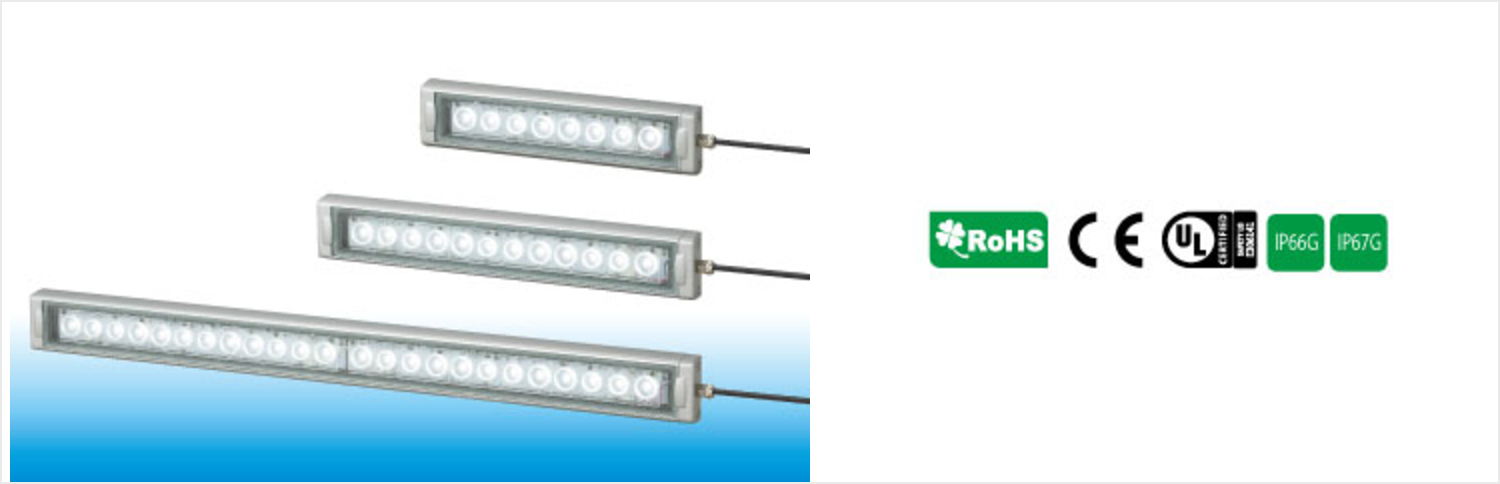

- Available in three lengths of 200mm, 300mm and 600mm
- 3m oil resistant side cable available
- Designed especially for the Machine Tooling Industry

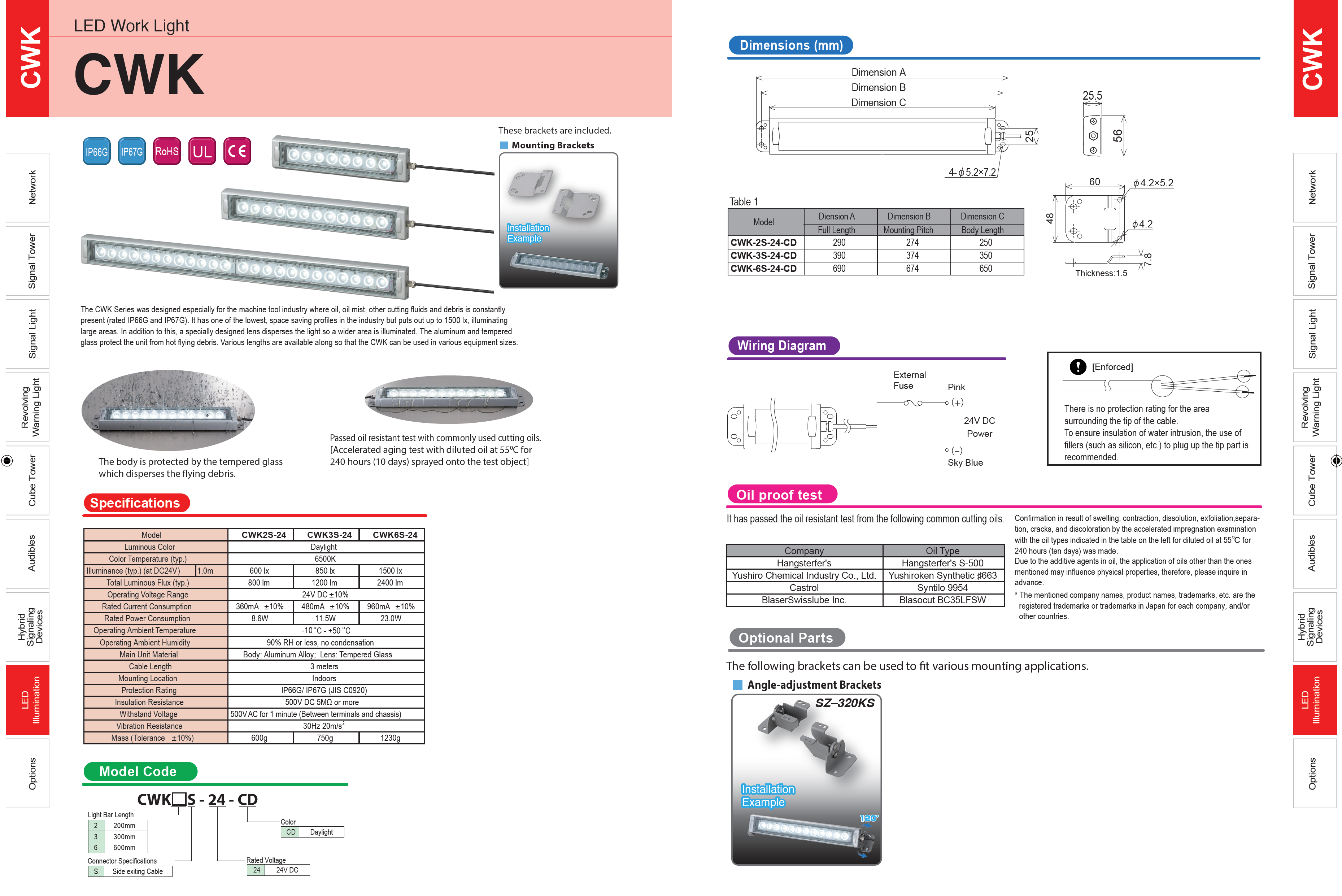

Model Specifications
|

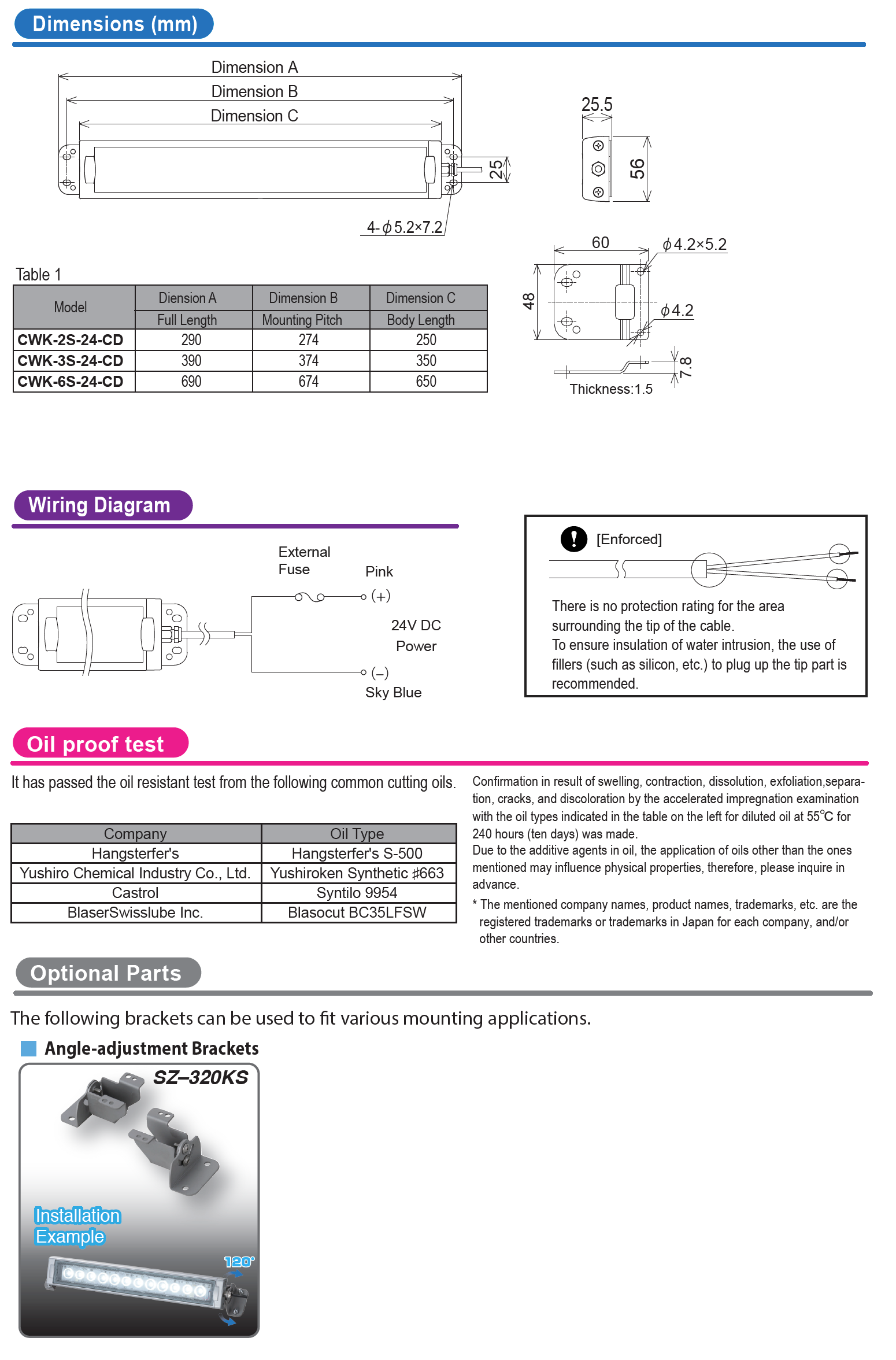

DIMENSIONS |
- 200mm - 300mm - 600mm |
|---|---|
| OPERATING VOLTAGES | - DC24V (Polarized) |
| BODY STYLE | - 3m Oil-resistant Side-exiting Cable - Aluminum Body |
| LENS MATERIAL | - Tempered Glass |
| CONFORMITY STANDARDS | - CE - UL - IEC62471-2 - RoHS |
| PROTECTION RATINGS | - IP66G - IP67G |
