Description

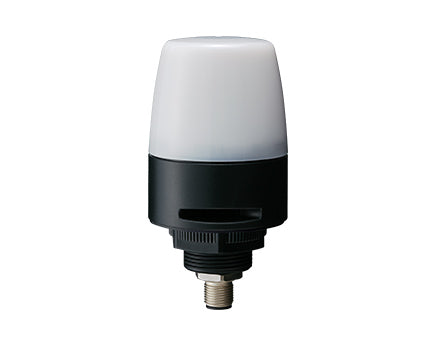

The IO-Link Indicator Series seamlessly installs into IO-Link masters and features multi-color LEDs with a touch sensor and rugged housing.
- Network Products
- IO-Link
- Signal Tower
- Φ56mm diameter
- Signal Beacon
- Continuous on
- Flashing (Strobe)
- Alarm
- 88dB
- Indoor
- IP65
- Multi-colour - 7 Colours - red, yellow, green, blue, white and more.
Product Features
- Capacitive touch sensor enables real-time status confirmations
- Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master
- Features an M12 connection for quick and easy installations
- Status indicator devices connected to an IO-Link master can be controlled collectively
- Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime
- Up to 7 colours can be emitted to indicate different equipment conditions
- High protection rating for operation in harsh environments
- Frosted lens displays evenly distributed light for unambiguous indication
- Click here for an IO-Link connection guide with OMRON Corporation "NX Series IO-Link Master Unit" （Please contact OMRON Corporation for inquiries regarding this document）
Model Specifications
| Model | NE-ILNN-M |
NE-ILNB-M With buzzer |
NE-ILTN-M With touch sensor |
NE-ILTB-M With buzzer and touch sensor |
NE-ILXB-M With buzzer, touch sensor, and digital / analog input |
| Size | φ56mm | ||||
| Rated Voltage | 24V DC | ||||
| Mounting Location/ Mounting Direction | Indoors, Upright | ||||
| Protection Rating | IP65 NEMA TYPE ４X, 13 | ||||
| LED Color | Multi-color (Red, Amber, Green, Blue, White, Purple, Cyan) | ||||
| LED Unit Modes | Continuous / Flashing | ||||
| Sound Pressure | － | Typ. 88 dB [8 sound types (Selectable)] |
－ | Typ. 88 dB [8 sound types (Selectable)] |
|
| Conformity Standards | ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) ●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A ● KC (KN 61000-6-4, KN 61000-6-2) |
||||
| Connection | M12 connector 5 pins A code | M12 connector 8 pins A code | |||

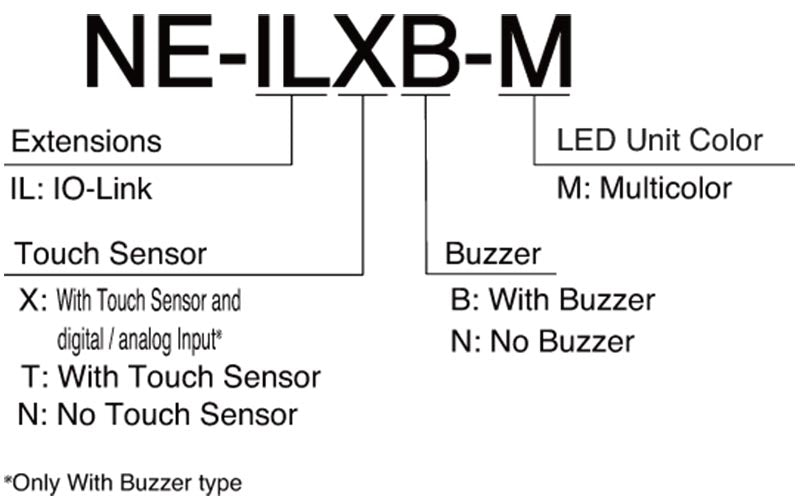

Model Number Configuration
