Description
'SAFER FOR THE EYE". No1 Global LED Signaling and Lighting Brand with Highest Industrial Quality, Conformity, IP and Safety Standards.
Model: CLA2S-24A-CD
LED Vision Inspection Lighting Work light bar
- IP69K, IP68, IP67, IP66, IP65
- 200mm Length
- 6800K Daylight White
- DC 24V
- 0.5m or 3m cable option
- Polycarbonate
- Conformity: CE, UL, ROHS.
- Highest Industrial Standards, Conformity, Quality and Value.

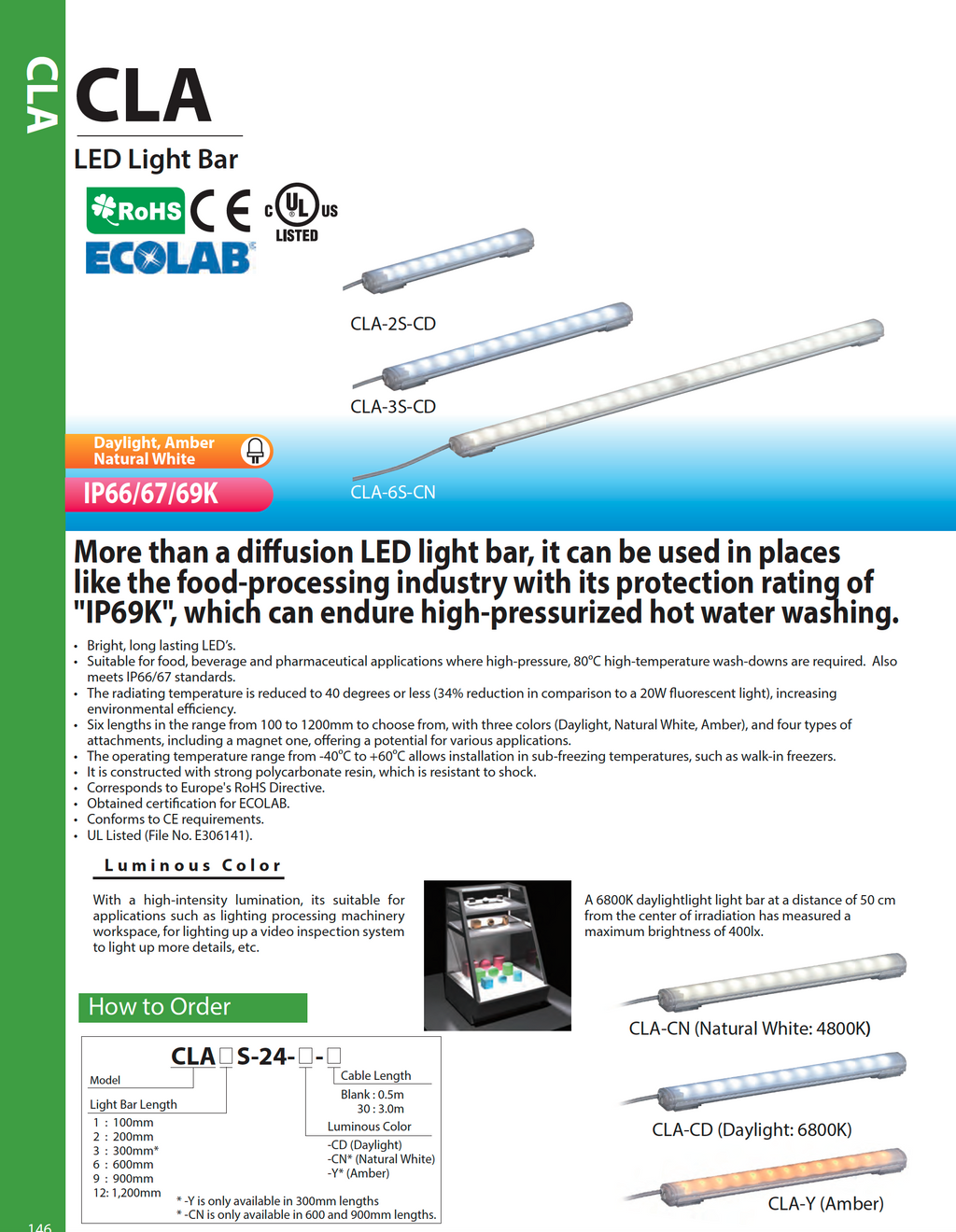

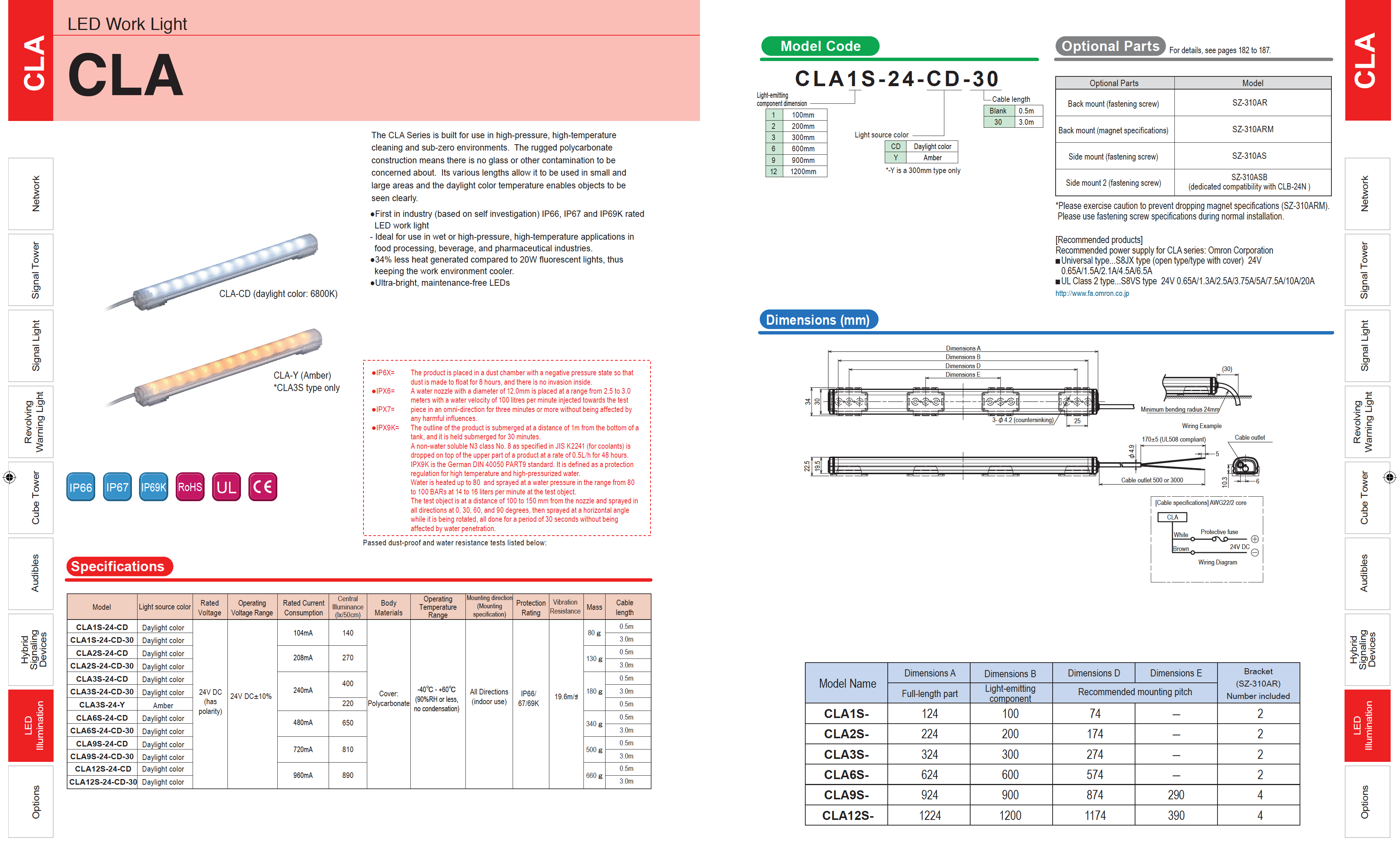

CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof
Product Features
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications

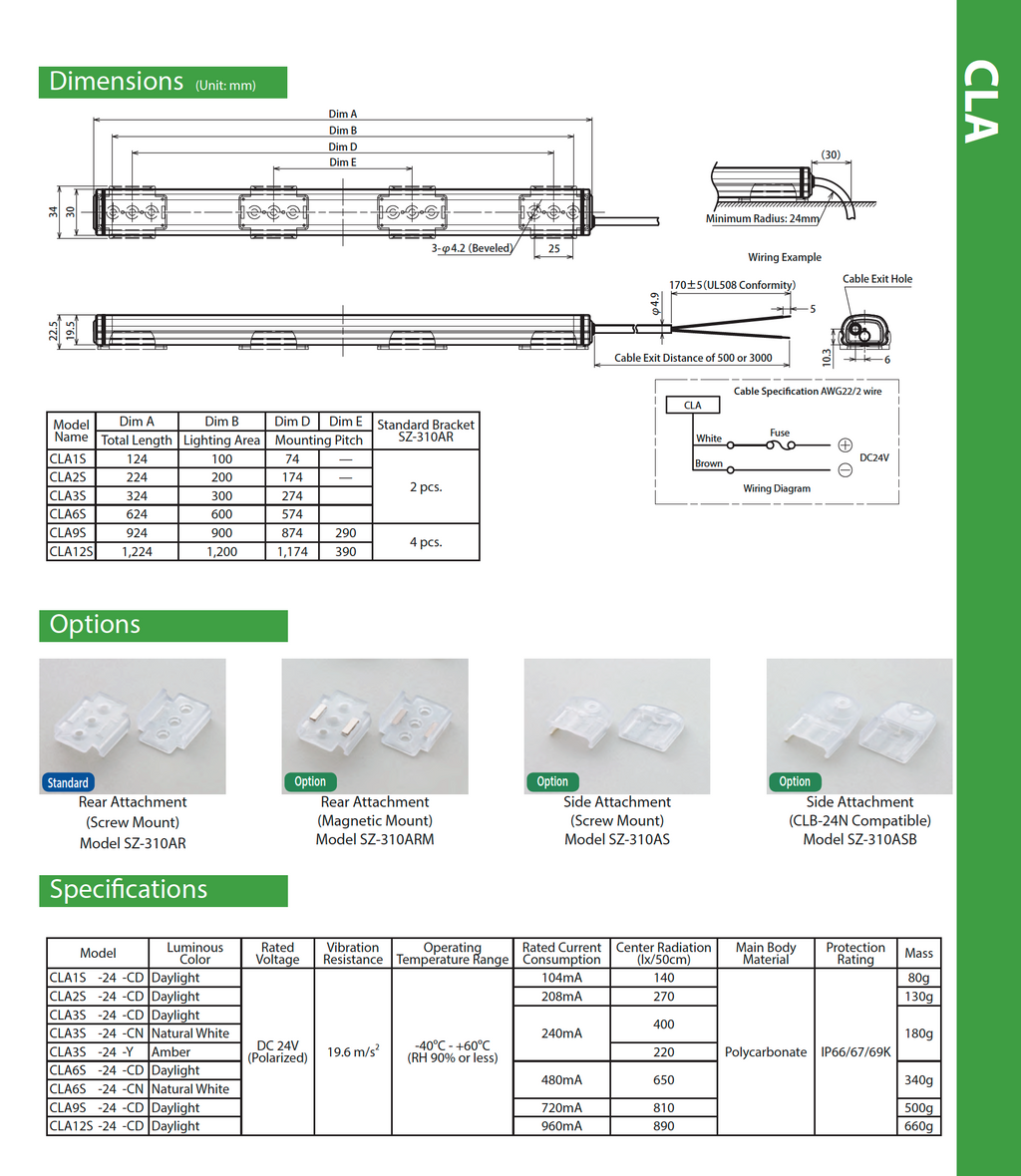

| DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
| RATED VOLTAGE | 24V DC |
| FUNCTIONS | Continuous Only |
| MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
| BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
| BODY COLOR | Body: Translucent-white |
| LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
| LENS MATERIAL | Translucent-white Polycarbonate Resin |
| CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
| PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
