Description

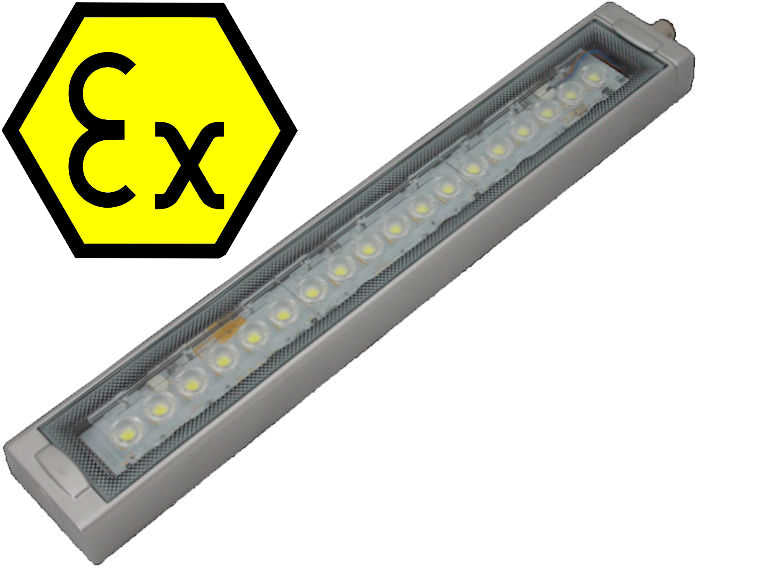

CLK-EX Explosion Proof LED Lighting Work Light
Explosion Proof ATEX EX Standards. Suitable for Zone 2 and Zone 22 applications, such as gas and dust.
Certification Approval : CE II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T135oC Dc IP65 94/9/EC (ATEX) CENELEC: EN 60079-0, EN 60079-15, EN 60079-31
FEATURES SUMMARY
• Aluminum Housing
• Tempered glass lens
• IP66G/67G/69K ratings
• Explosion-safe for gas and dust
• Suitable for Zone 2 and Zone 22
• Temperature Range of -400C to +600C
• CE Compliance in accordance to ATEX
• 1,200 lx (3S/3C) and 2,100 lx (6S) brightness
• Outdoor installation allows Upright installation only
• LED Color Temperatures of 6,500K (CD) and 5,000K (CN)
• Stainless Steel Housing (available for 350mm long models)
• 250mm length (2S, 350mm length (3S/3C), 650mm length (6S) available
Product Features
- Explosion Proof for Gas and Dust
- Suitable for Zone 2 and Zone 22
- CE Compliant in accordance to ATEX
- Voltage rating of 24 V DC at 416mA
- Temperature range of -40℃ to +60℃
- Protection rating of IP66G,67G,69K
- 200mm～600mm in length
- Luminous intensity (at 100cm) of 820～2100 lux
- Lens material made of tempered glass
- Body material made of aluminum alloy

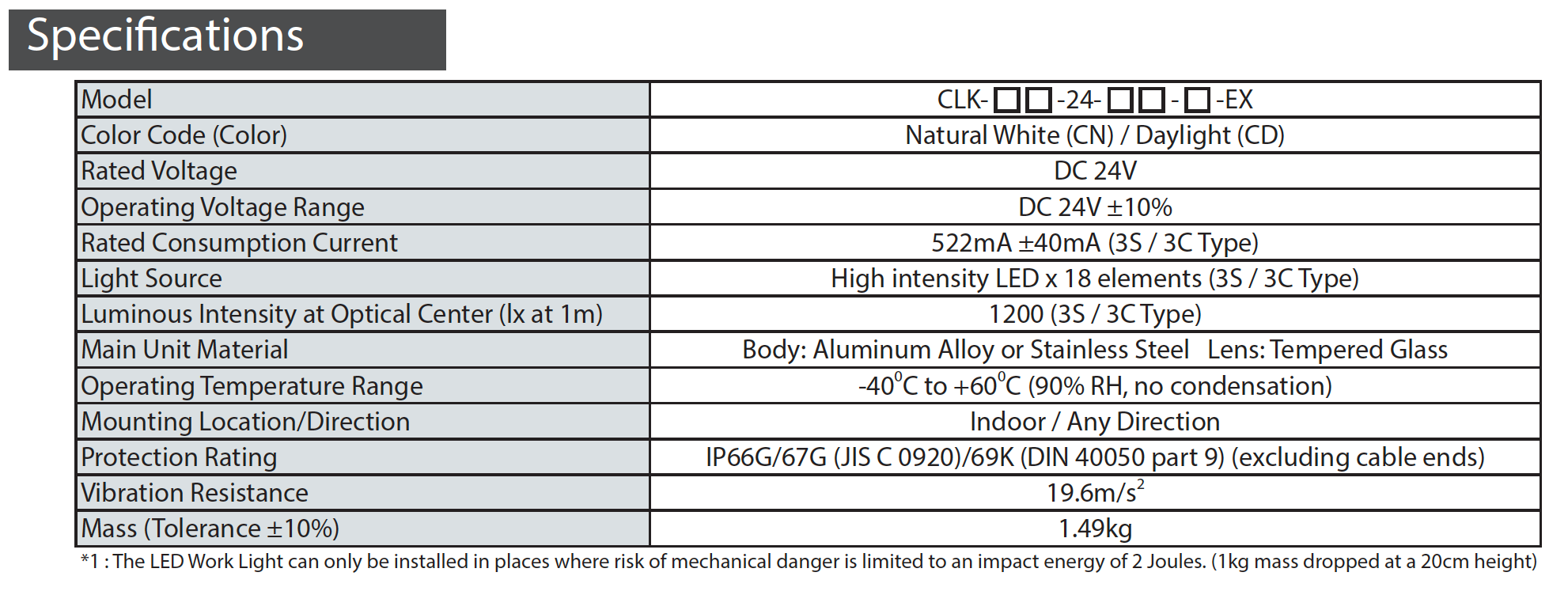

Model Specifications

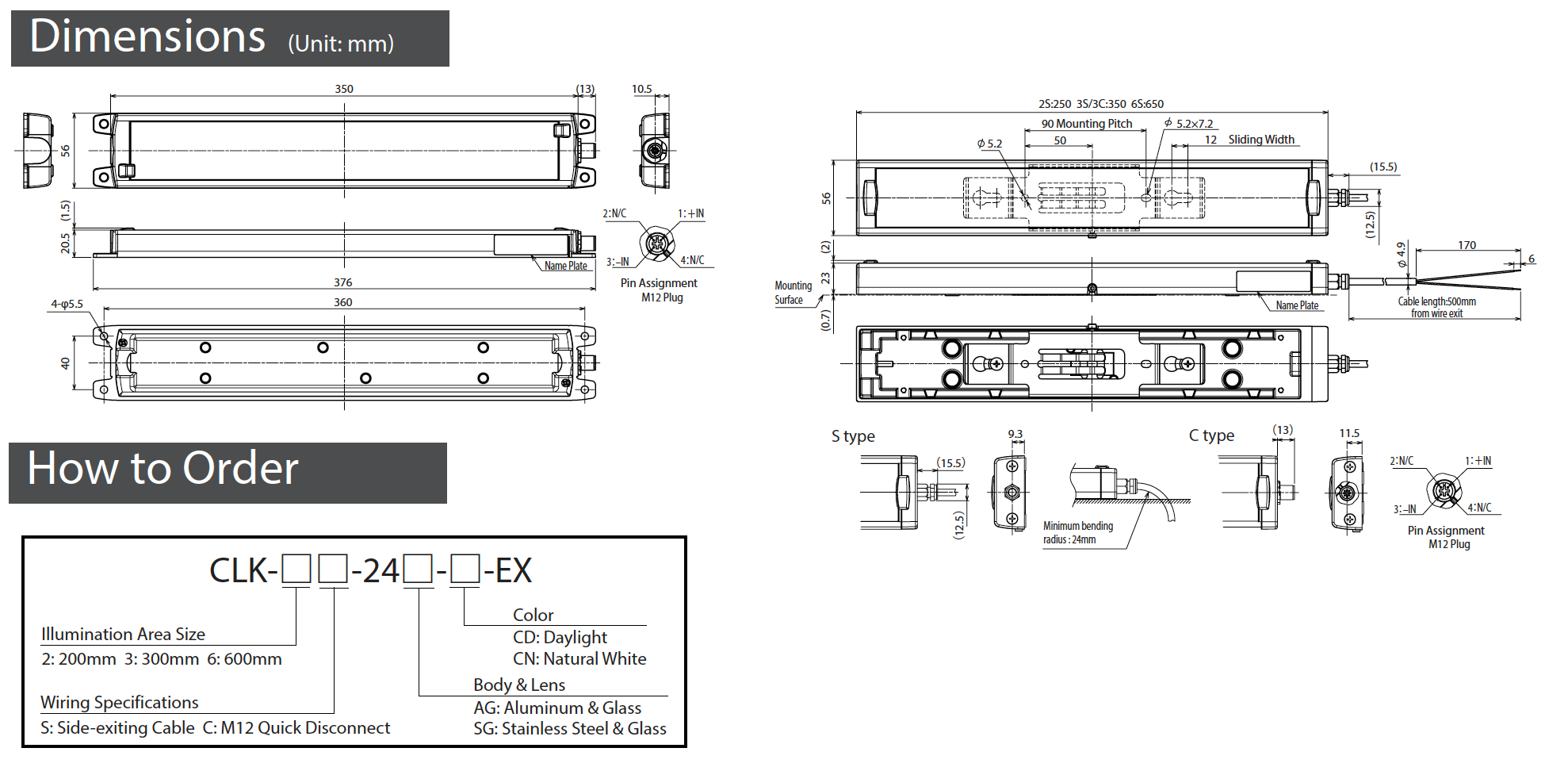

| DIMENSIONS | - 200mm - 300mm - 600mm |
|---|---|
| RATED VOLTAGE | - 24V DC |
| BODY STYLE | - Body material made of aluminum alloy |
| CONFORMITY STANDARDS | - RoHS - CE Marking - IEC62471-2 - Ex |
| PROTECTION RATING | - IP66G - IP67G - IP69k |
